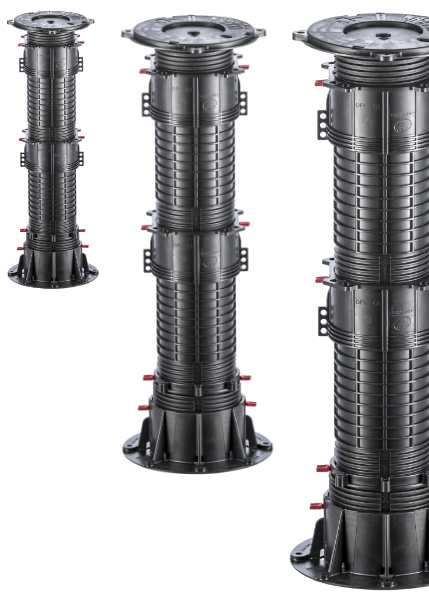

DPH Adjustable Pedestal System For Any Type Of Terrace Or Raised Floor

The strength and durability of the DPH pedestal are what makes it a solid choice amongst the Buzon® pedestal family. With adjustments from 12 to 1070mm, the DPH polypropylene pedestal is a versatile solution for creating large public spaces as well as open environments.

Creating raised floors and external terraces (either paving or decking) is simpler than ever with the Buzon DPH pedestal. The reinforced structure of the DPH decking pedestals ensures they maintain their strength and durability – even under heavy and frequent use. Heavier floor coverings such as large-format concrete are ideal for this robust and powerful pedestal.

With integrated slope correction built into the head of most of the pedestals in the range (look for the models with PH5 in their name), it's perfect for any project involving falls. The range also offers the ability to create ramps and slope with its inbuilt slope correction of up to 5%, with a further 10% available through the addition of accessories to the base of the pedestal.

For technical data sheets and further information on the DPH pedestal range please visit:

resource-center

Resource Centre

For DPH NBS Specifications visit:

NBS-plus

NBS Source

For help calculating pedestal requirements for your project please visit:

calculator

Pedestal Calculator

advantages

Advantages

accessories

Accessories

case-study_icon

Case Studies

video-play

Video

DPH Pedestals

inbilt
INBUILT SLOPE CORRECTION -PH5 MODELSUP TO 5%
slope
TOTAL SLOPE CORRECTION UP TO 15%
HEIGHT ADJUSTMENT
HEIGHT ADJUSTMENT 12-1070MM

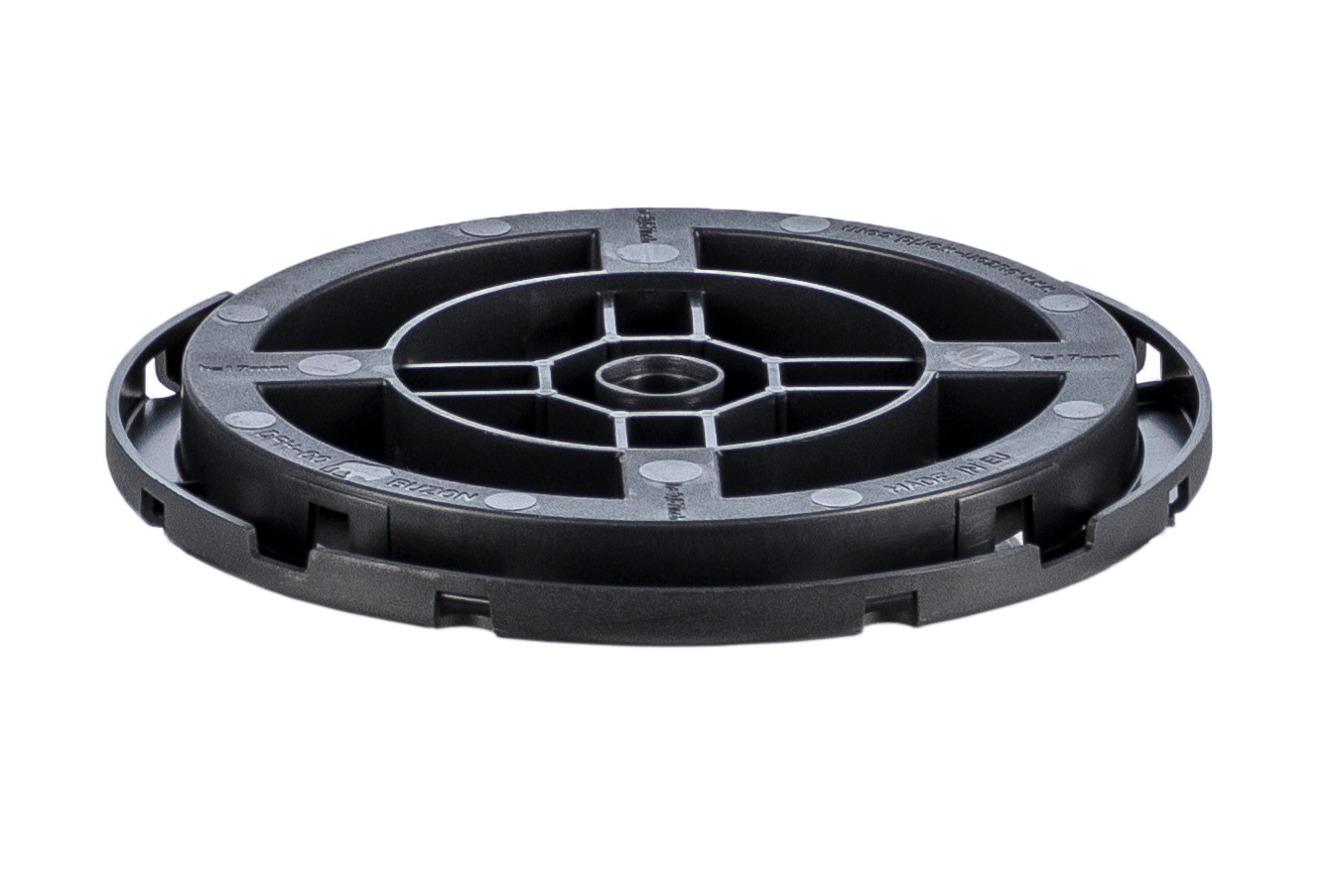

DPH-F17

DPH-F17

17mm
View
PB-0-S12

PB-0-S12

12-18mm
View
PB-0-S18

PB-0-S18

18-28mm
View
DPH-F28

DPH-F28

28mm
View

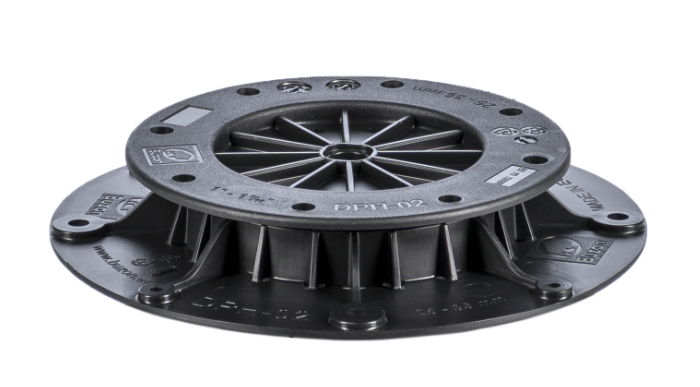

DPH-02

DPH-02

25-36mm
View

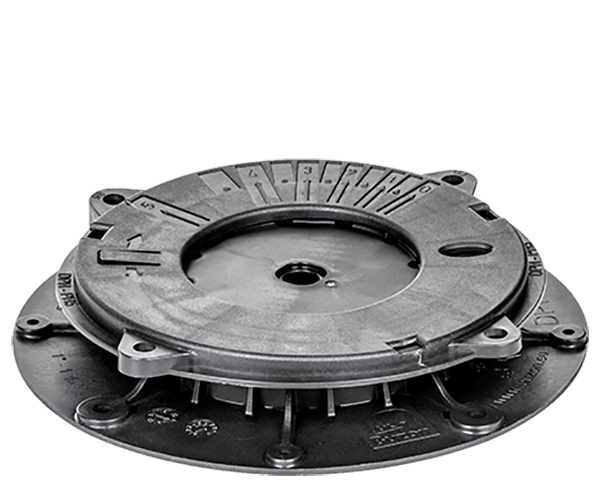

DPH-02-PH5

DPH-02-PH5

33-44mm
View

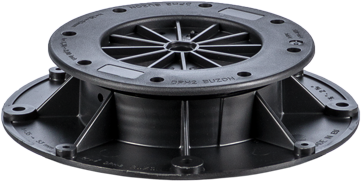

DPH-2

DPH-2

35-53mm
View

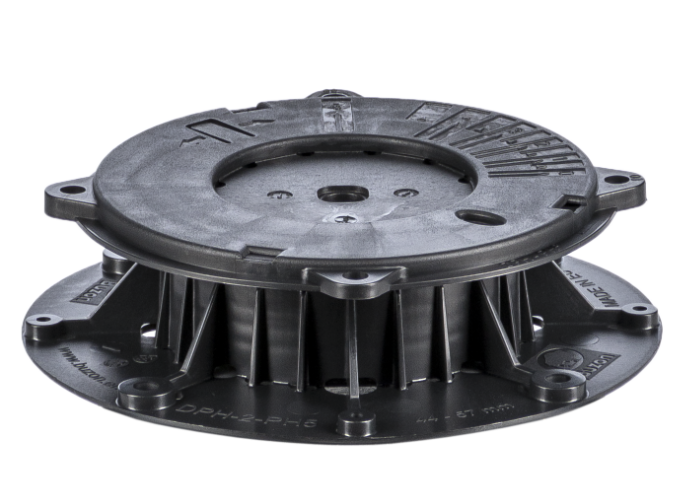

DPH-2-PH5

DPH-2-PH5

44-57mm
View

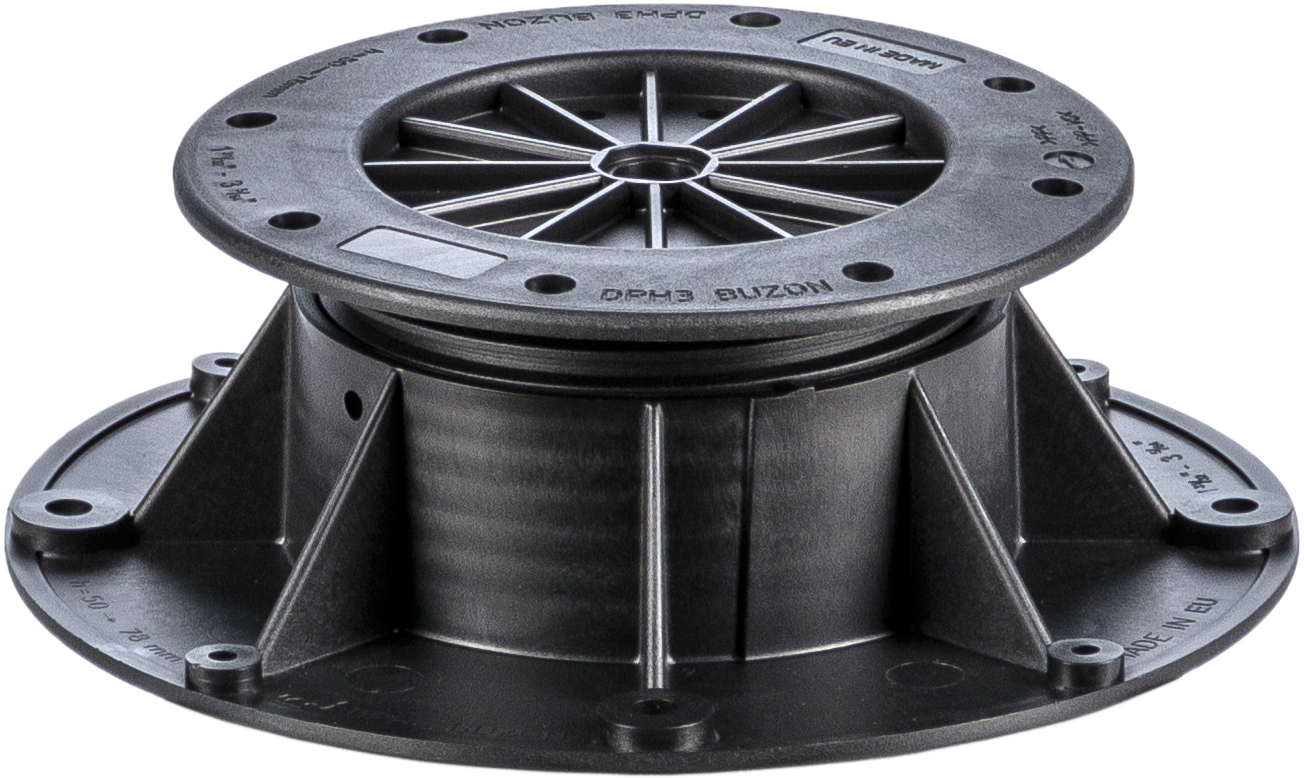

DPH-3

DPH-3

50-78mm
View

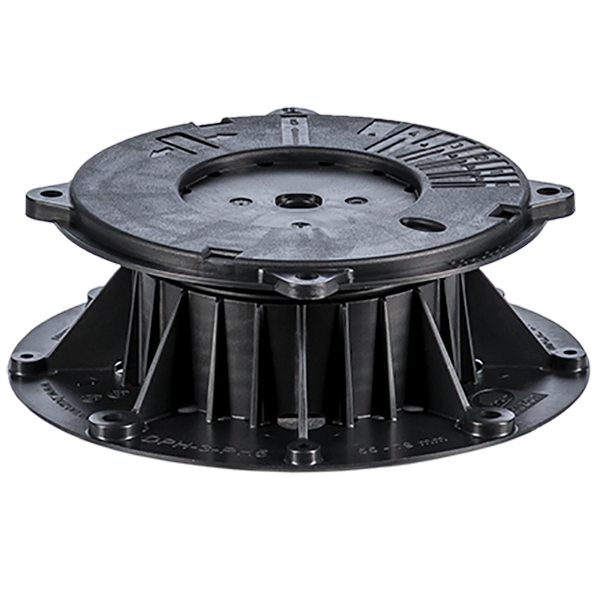

DPH-3-PH5

DPH-3-PH5

55-79mm
View
DPH-4-PH5

DPH-4-PH5

77-108mm
View

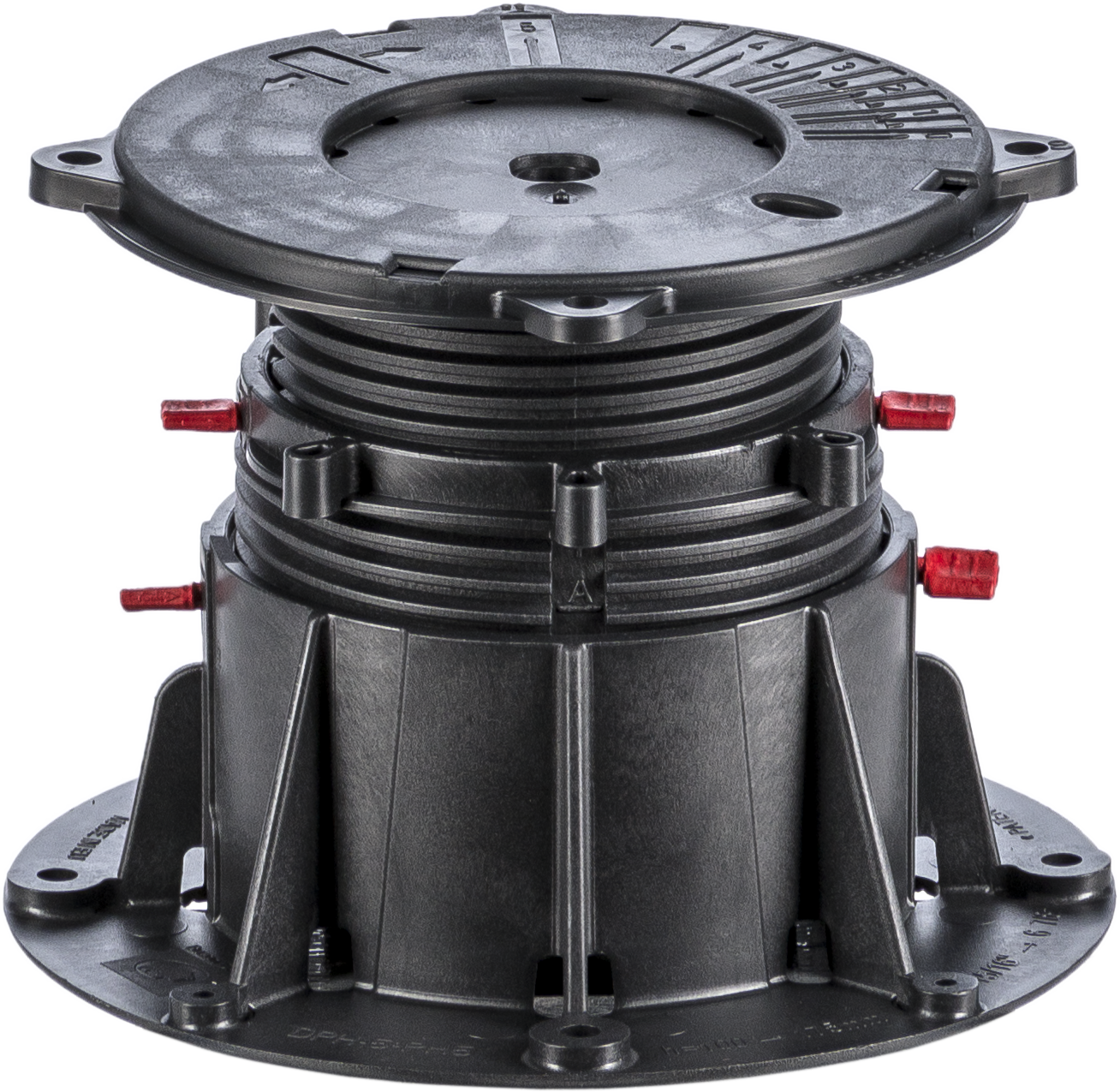

DPH-5-PH5

DPH-5-PH5

100-175mm
View

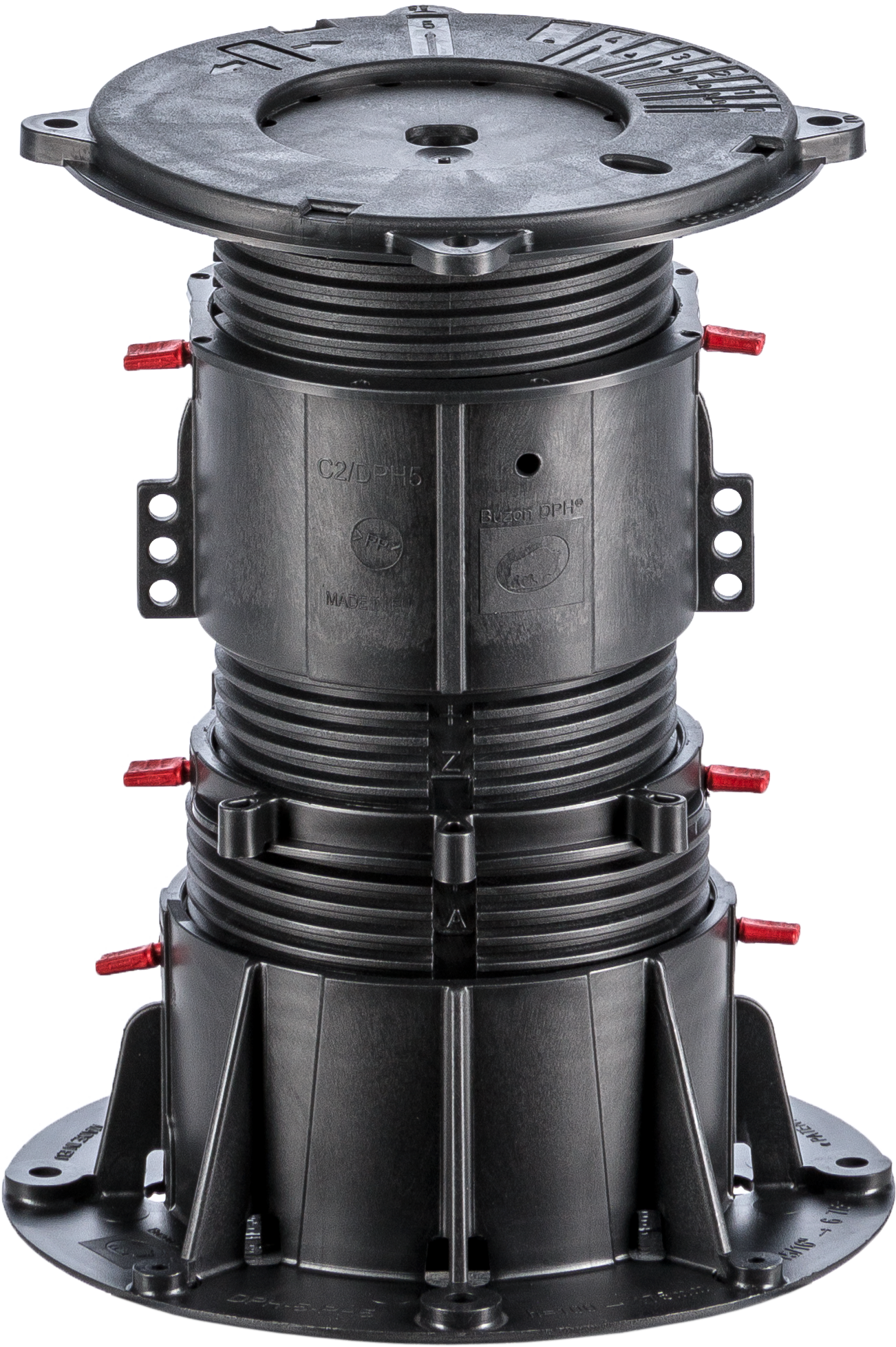

DPH-6-PH5

DPH-6-PH5

175-285mm
View

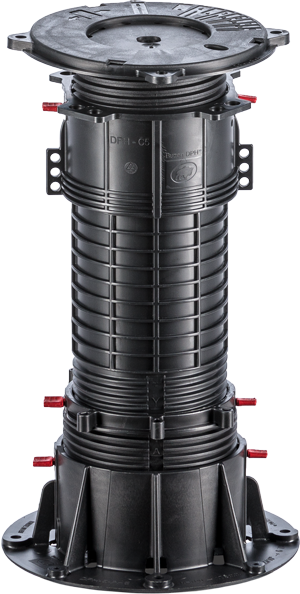

DPH-7-PH5

DPH-7-PH5

285-400mm
View

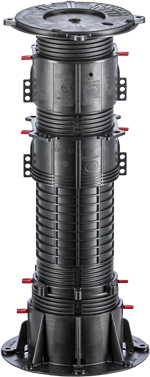

DPH-8-PH5

DPH-8-PH5

355-515mm
View

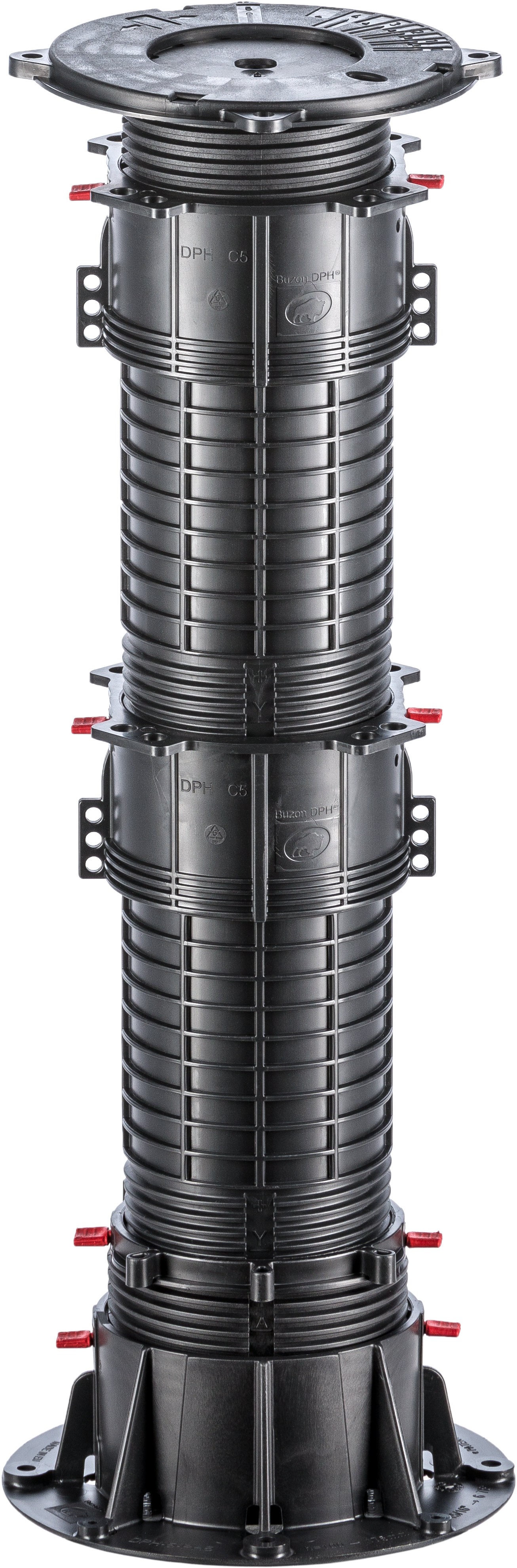

DPH-9-PH5

DPH-9-PH5

465-625mm
View

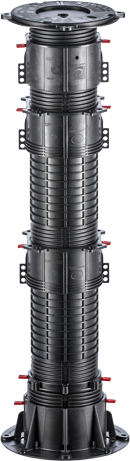

DPH-10-PH5

DPH-10-PH5

545-740mm
View

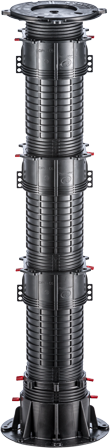

DPH-11-PH5

DPH-11-PH5

645-850mm
View

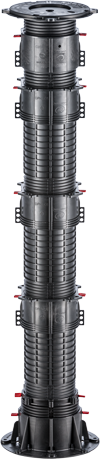

DPH-12-PH5

DPH-12-PH5

720-960mm
View

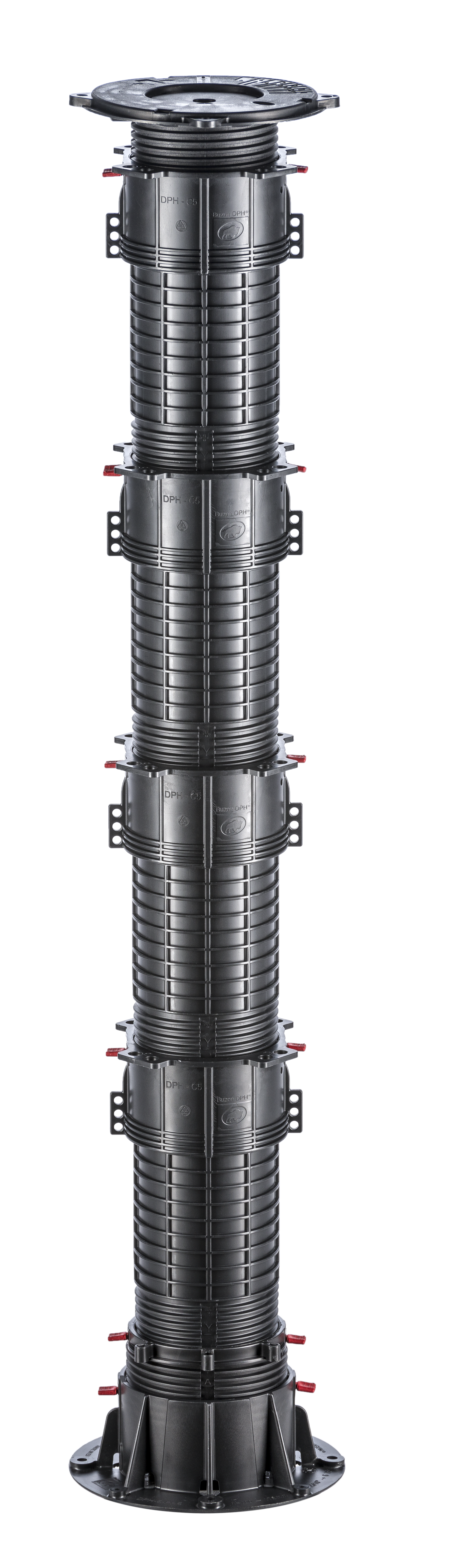

DPH-13-PH5

DPH-13-PH5

830-1070mm
View

Advantages of Buzon Pedestals

Rapid Installation
Rapid Installation
Solution
Solutions for all situations
water run off
Rapid excess water run off
project
30 year project warranty
UV & weather
UV & weather resistant
load_bearing
Superior load bearing
Untitled-2
Acoustic & thermal insulation
image2-1
Patented slope corrector
Sustainable
Sustainable materials
technical support
Specialised technical support
Lightweight
Lightweight structure
Conceals-utilities
Conceals utilities

Videos

Brochure

data-sheet

Brochure

Accessories for the DPH Range

We also offer a wide range of accessories to help you create your raised decking. Whatever the project, we have easy and reliable solutions which address many of the problems encountered on construction sites.

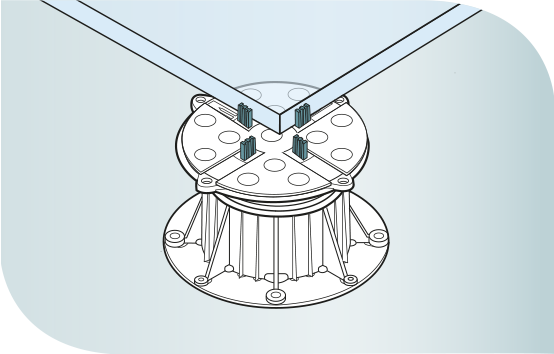

dph-spacers-illustration

Spacer Tabs

Attached to the pedestal head, Spacer Tabs separate pavers maintaining perfect alignment and facilitating drainage. The DPH range has spacer tabs in a variety of heights and widths to suit pavers of assorted sizes, including 20mm porcelain.

dph-shim-illustration

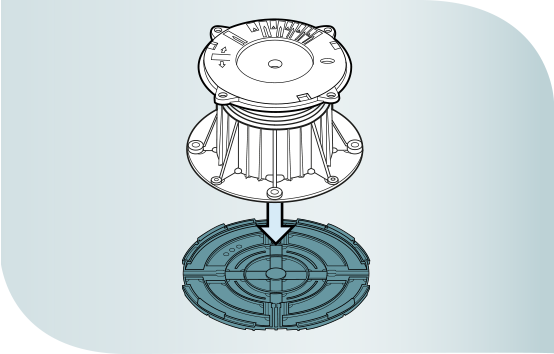

Shims

Shim options are available for the head or the base of the DPH pedestal and depending on where they are used, can be used to aid stability, deaden sound, or to add height either uniformly or to compensate for variations in paver thickness.

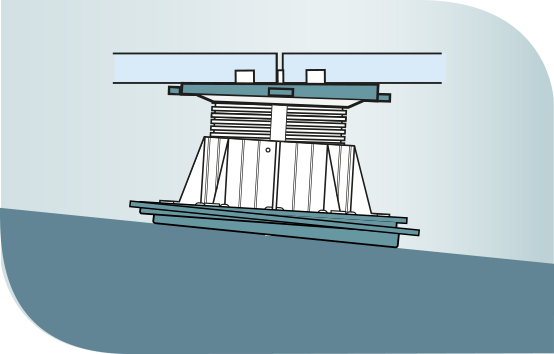

dph-slope-corr-illustration

Slope Correction

Whether correcting existing groundworks, or creating ramps and slopes, the DPH range comes with an inbuilt slope correction of up to 5% in the head of the pedestal, and has the potential for a further 10% added to the pedestal base. Additional tools allow you to identify the correction required for each pedestal and then perform the perfect adjustment.

dph-membrane-illustration

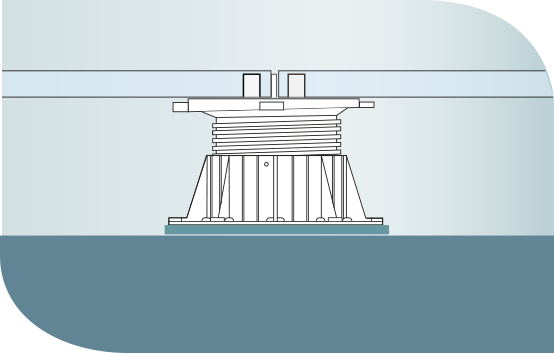

Membrane Protection

This acoustic pad sits under the pedestal to help deaden sound, whilst providing that little extra protection in more demanding environments. We offer two different thicknesses as standard.

dph-joist-supp-illustration

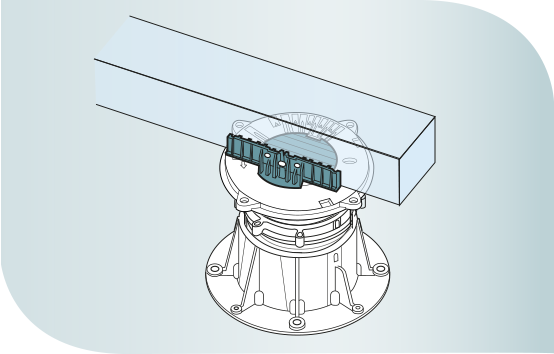

Joist Support

Joist Supports are used to firmly attach timber, composite or metal battens to the head of the pedestal.

dph-couplers-illustration

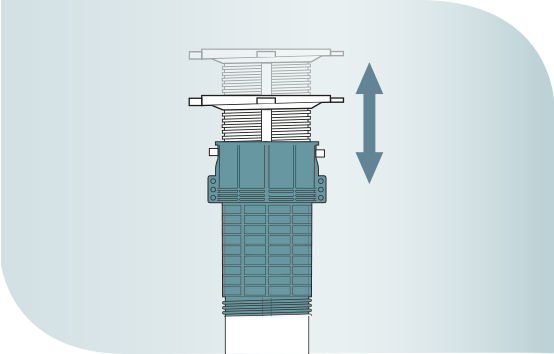

Couplers

If additional height is required for particular pedestal models, Couplers can be a solution. Only supplied on advice - contact us for more information.

dph-edging-illustration

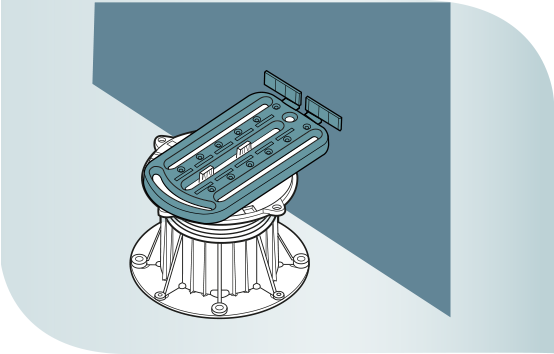

Edging Products

Our U-Wall, U-Edge and ALUgrate products allow clean finishes against walls and provide excellent drainage options. The U-End allows the creation of vertical steps where the terrace edge is not enclosed.

dph-winduplift-illustration

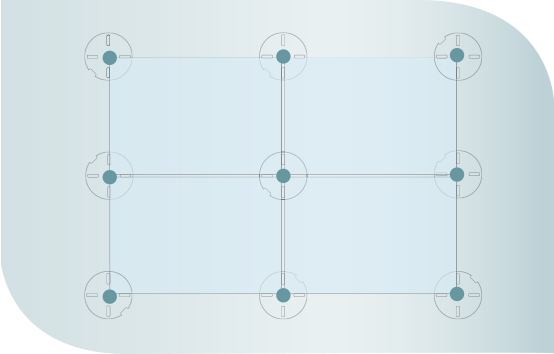

Wind Uplift

In some installs, the potential for wind uplift can be an issue. Our wind resistance discs are used to give extra security by physically locking down pavers to the head of the pedestal.

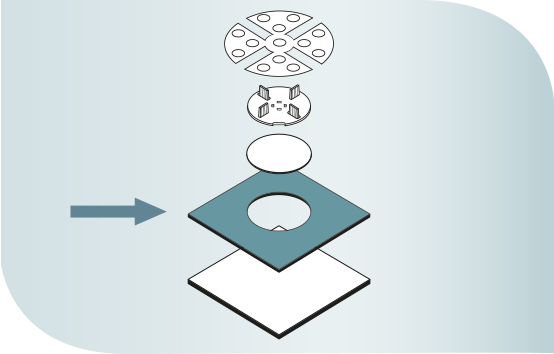

dph-low-buildup-illustration

Low Build-Up

These can be used alongside pedestals as part of an install where terrace height is variable and minimal height is required.

pedestals

Average number of pedestals required per m²*

Dimensions surface area
of the terrace
20 m2
50 m2
100 m2
1000 m2
Length
5
10
10
50
Width
4
5
10
20
Paver format
Pedestals/m2
Pedestals/m2
Pedestals/m2
Pedestals/m2
40 × 40 cm
7.70
7.28
6.76
6.43
50 × 50 cm
4.95
4.62
4.41
4.14
60 × 60 cm
4.00
3.60
3.24
2.94
75 × 75 cm
4.90
4.36
4.21
3.71
80 × 80 cm
4.15
4.06
3.65
3.24
90 × 90 cm
6.00
5.76
5.76
5.15
100 × 100 cm
4.95
4.62
4.41
4.14
120 × 30 cm
7.50
6.48
6.30
5.78
120 × 40 cm
5.50
5.04
4.68
4.34
120 × 60 cm
4.00
3.60
3.24
2.98
90 × 45 cm
6.00
5.76
5.76
5.15
Dimensions surface area
of the terrace
Length
20 m2
5
50 m2
10
100 m2
10
1000 m2
50
Dimensions surface area
of the terrace
Width
20 m2
4
50 m2
5
100 m2
10
1000 m2
20
Paver format
40 × 40 cm
Pedestals/m2
7.70
Pedestals/m2
7.28
Pedestals/m2
6.76
Pedestals/m2
6.43
Paver format
50 × 50 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
60 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.94
Paver format
75 × 75 cm
Pedestals/m2
4.90
Pedestals/m2
4.36
Pedestals/m2
4.21
Pedestals/m2
3.71
Paver format
80 × 80 cm
Pedestals/m2
4.15
Pedestals/m2
4.06
Pedestals/m2
3.65
Pedestals/m2
3.24
Paver format
90 × 90 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Paver format
100 × 100 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
120 × 30 cm
Pedestals/m2
7.50
Pedestals/m2
6.48
Pedestals/m2
6.30
Pedestals/m2
5.78
Paver format
120 × 40 cm
Pedestals/m2
5.50
Pedestals/m2
5.04
Pedestals/m2
4.68
Pedestals/m2
4.34
Paver format
120 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.98
Paver format
90 × 45 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Dimensions surface area
of the terrace
20 m2
Length
5
Width
4
Paver format
Pedestals/m2
40 × 40 cm
7.70
50 × 50 cm
4.95
60 × 60 cm
4.00
75 × 75 cm
4.90
80 × 80 cm
4.15
90 × 90 cm
6.00
100 × 100 cm
4.95
120 × 30 cm
7.50
120 × 40 cm
5.50
120 × 60 cm
4.00
90 × 45 cm
6.00
Dimensions surface area
of the terrace
50 m2
Length
10
Width
5
Paver format
Pedestals/m2
40 × 40 cm
7.28
50 × 50 cm
4.62
60 × 60 cm
3.60
75 × 75 cm
4.36
80 × 80 cm
4.06
90 × 90 cm
5.76
100 × 100 cm
4.62
120 × 30 cm
6.48
120 × 40 cm
5.04
120 × 60 cm
3.60
90 × 45 cm
5.76
Dimensions surface area
of the terrace
100 m2
Length
10
Width
10
Paver format
Pedestals/m2
40 × 40 cm
6.76
50 × 50 cm
4.41
60 × 60 cm
3.24
75 × 75 cm
4.21
80 × 80 cm
3.65
90 × 90 cm
5.76
100 × 100 cm
4.41
120 × 30 cm
6.30
120 × 40 cm
4.68
120 × 60 cm
3.24
90 × 45 cm
5.76
Dimensions surface area
of the terrace
1000 m2
Length
50
Width
20
Paver format
Pedestals/m2
40 × 40 cm
6.43
50 × 50 cm
4.14
60 × 60 cm
2.94
75 × 75 cm
3.71
80 × 80 cm
3.24
90 × 90 cm
5.15
100 × 100 cm
4.14
120 × 30 cm
5.78
120 × 40 cm
4.34
120 × 60 cm
2.98
90 × 45 cm
5.15

Disclaimer:
*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
For tile formats larger than 60mm and / or pedestal heights greater than 100mm, additional supporting pedestals per tile may be required. Mesh backing on tiles may also be advisable in these circumstances.
Please contact us if you need further assistance determining quantities or pedestal layout. Note that calculations for large or complex areas will require supporting CAD files and will have a minimum 7 day lead time.
