PB Adjustable Pedestals for Any Type of Terrace or Raised Floor

Fully adjustable from 15 to 955mm, PB pedestals are perfect for creating commercial and residential spaces.

Its ergonomic design makes the PB pedestal easy to adjust and allows quick and reliable installation. The enlarged surface of the head of the PB pedestal is specially adapted for the laying of very thick ceramic tiles, concrete and natural stone pavers, or a floor made of wooden or composite boards.

The versatility of the system means that they can be used easily for a small rooftop terrace or a large commercial installation.

For technical data sheets and further information on the PB pedestal range please visit:

resource-center

Resource Centre

For PB Pedestal
NBS Specifications visit:

NBS-source

NBS Source

For help calculating pedestal requirement for your project please visit:

calculator

Pedestal Calculator

advantages

Advantages

accessories

Accessories

case-studies

Case Studies

Brochure

Brochure

PB Pedestals

paving-stone
ENLARGED PEDESTAL HEAD FOR LARGER PAVING STONES
hieght-adjust
HEIGHT ADJUSTMENT 15-955MM

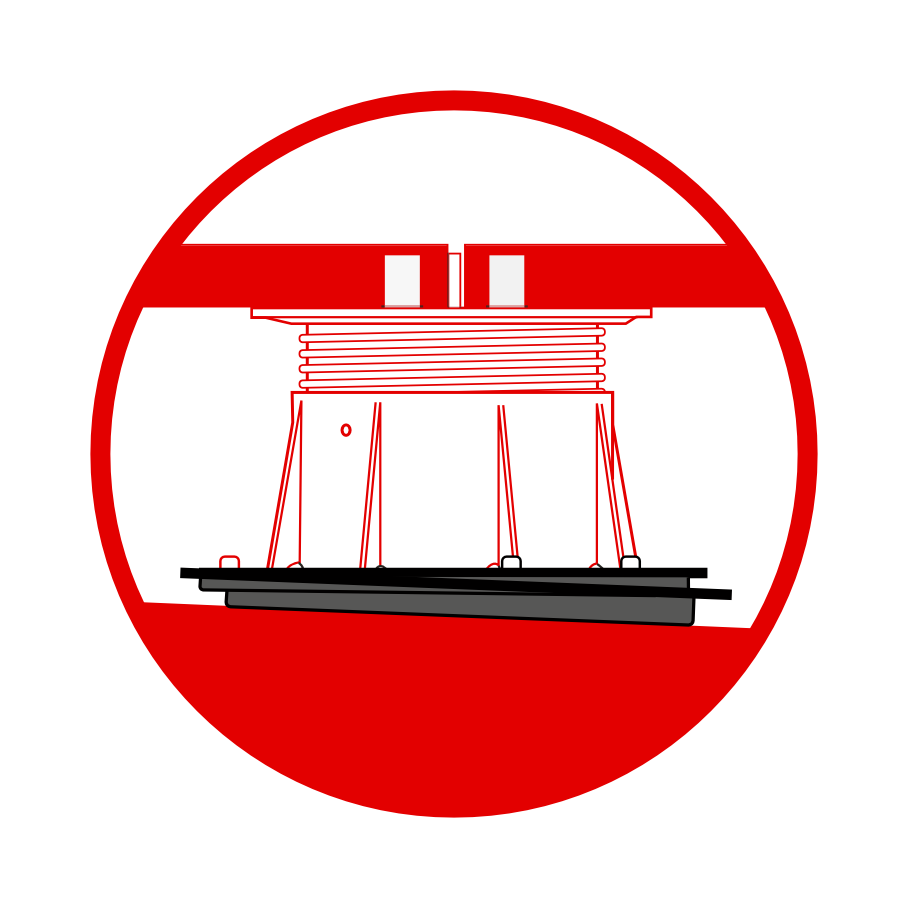

SLOPE
SLOPE CORRECTION UP TO 10%

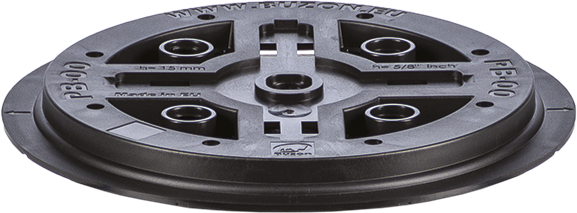

PB-00

PB-00

15mm
View

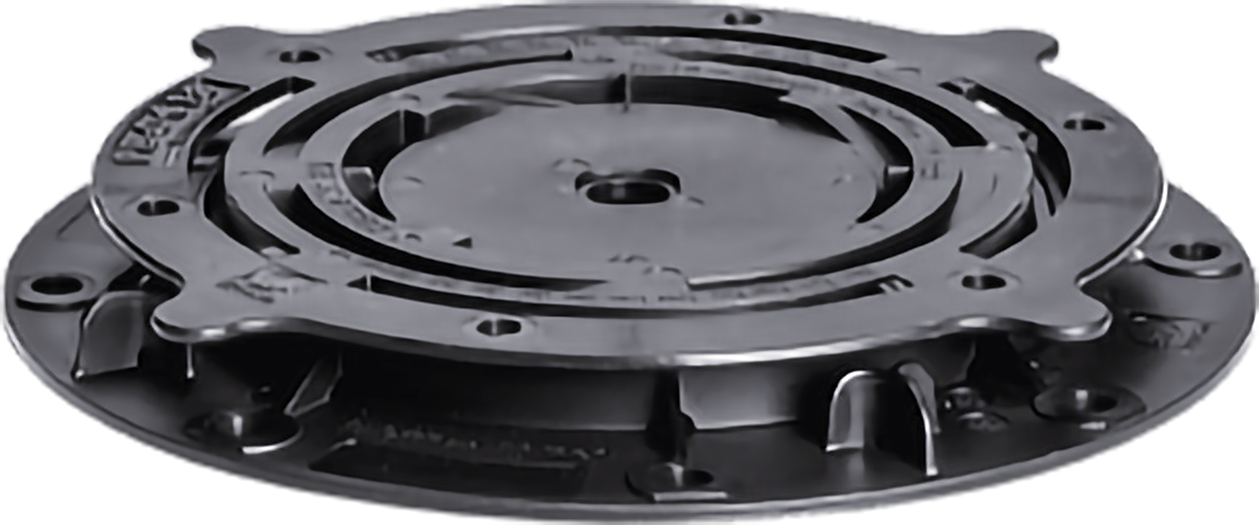

PB-0-S18

PB-0-S18

18-28mm
View

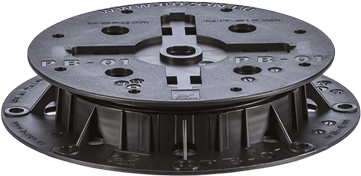

PB-01

PB-01

28-42mm
View

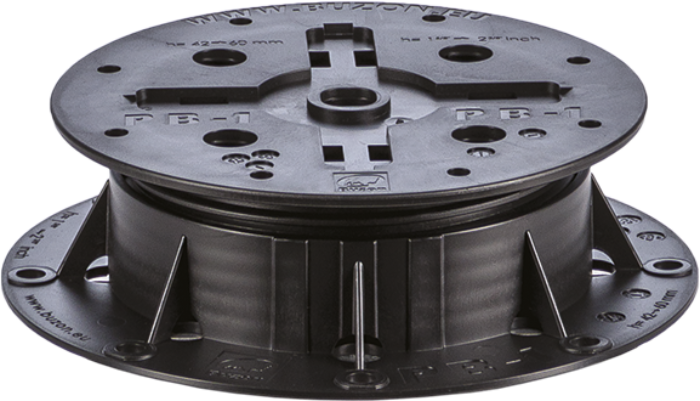

PB-1

PB-1

42-60mm
View

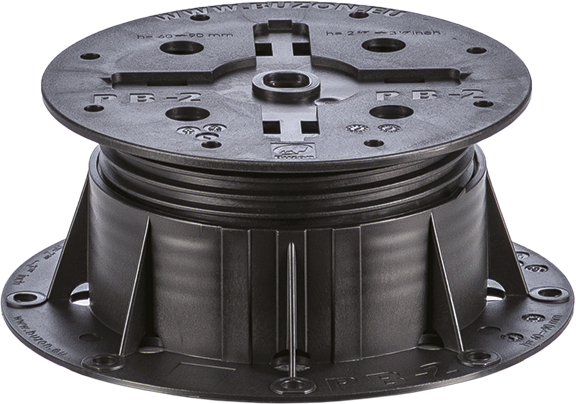

PB-2

PB-2

60-90mm
View

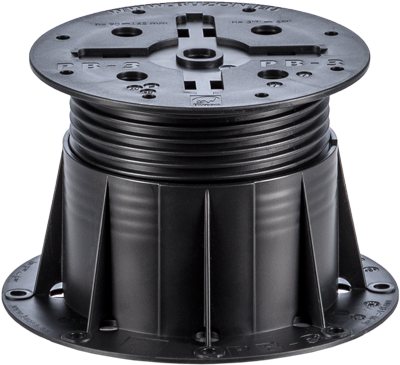

PB-3

PB-3

90-145mm
View
PB-4

PB-4

145-245mm
View

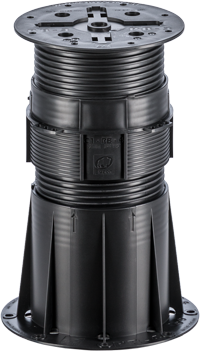

PB-5

PB-5

230-315mm
View

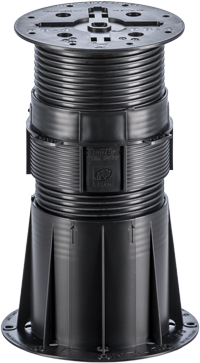

PB-6

PB-6

285-367mm
View

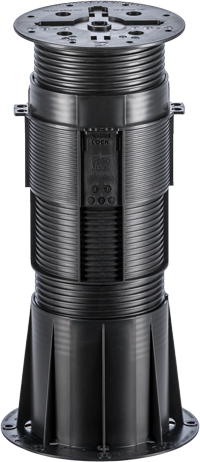

PB-7

PB-7

365-480mm
View

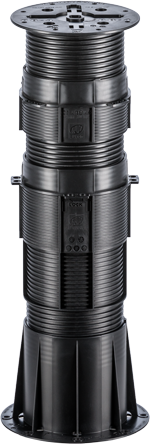

PB-8

PB-8

480-595mm
View

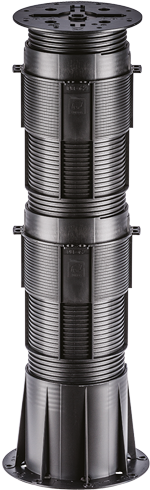

PB-9

PB-9

560-715mm
View

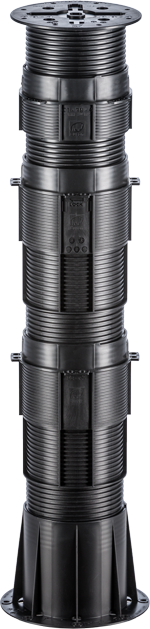

PB-10

PB-10

675-830mm
View

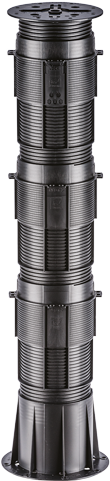

PB-11

PB-11

755-955mm
View

Advantages of Buzon Pedestals

Rapid Installation
Rapid Installation
Solution
Solutions for all situations
water run off
Rapid excess water run off
project
30 year project warranty
UV & weather
UV & weather resistant
load_bearing
Superior load bearing
Untitled-2
Acoustic & thermal insulation
image2-1
Patented slope corrector
Sustainable
Sustainable polypropylene
technical support
Specialised technical support
Lightweight
Lightweight structure
Conceals-utilities
Conceals utilities

Accessories for the PB Range

We also offer a wide range of accessories to help you create your raised decking. Whatever the project, we have easy and reliable solutions which address many of the problems encountered on construction sites.

spacersv2

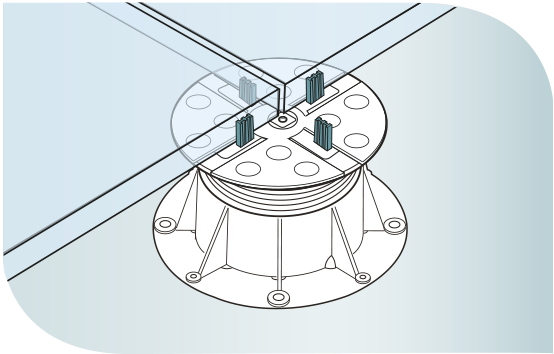

Spacers

Attached to the pedestal head, Spacer Tabs separate pavers maintaining perfect alignment and facilitating drainage. The PB range has spacer tabs in a variety of heights and widths to suit pavers of assorted sizes, including 20mm porcelain.

shims

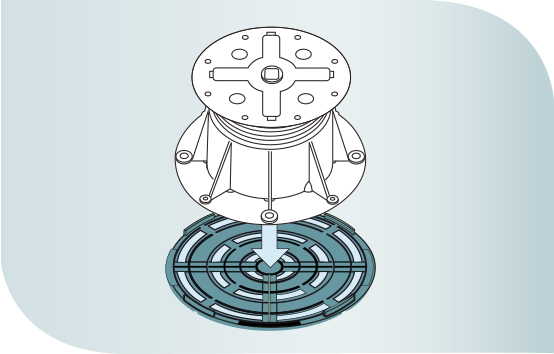

Shims

Shim options are available for the head or the base of the PB pedestal and can be used to aid stability, deaden sound, or to add height either uniformly or to compensate for variations in paver thickness.

slope-currect

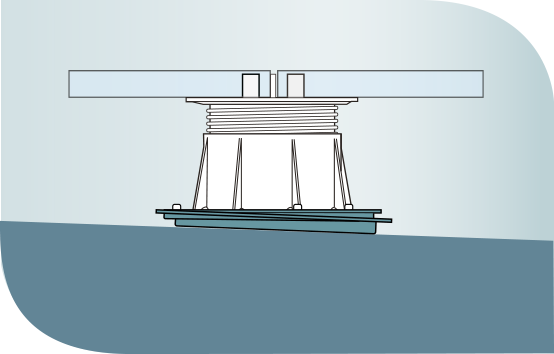

Slope Correction

Whether correcting existing groundworks or creating ramps and slopes, the PB range has the potential for up to 10% correction to be added to the pedestal base. Additional tools allow you to identify the correction required for each pedestal and then perform the perfect adjustment.

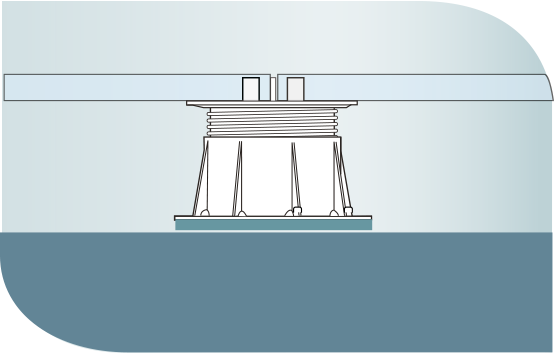

membrane-protection

Membrane Protection

This acoustic pad sits under the pedestal to help deaden sound, whilst providing that little extra protection in more demanding environments. We offer two different thicknesses as standard.

joist-support

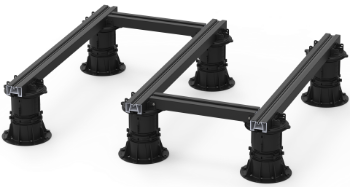

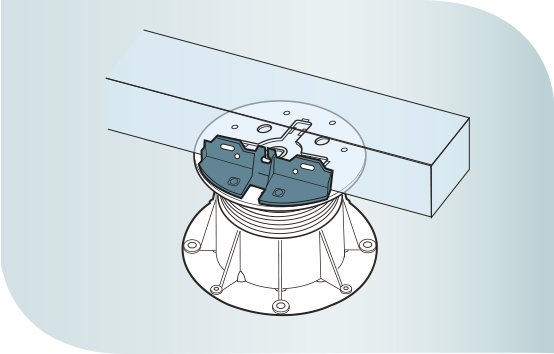

Joist Support

Joist Supports are used to firmly attach timber, composite or metal battens to the head of the pedestal.

couplers

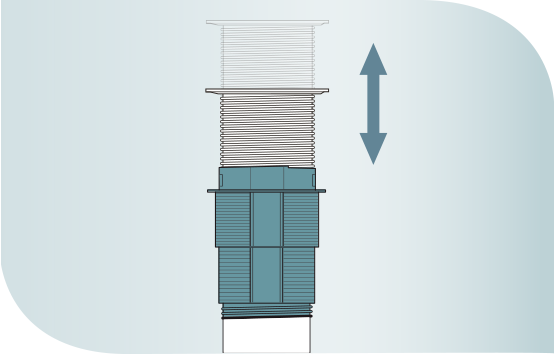

Couplers

If additional height is required for particular pedestal models, Couplers can be a solution. Only supplied on advice - contact us for more information.

Edgign-products

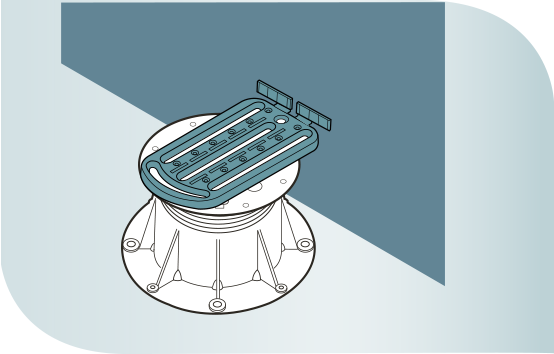

Edging Products

Our U-Wall, U-Edge and Alugrate products allow clean finishes against walls and provide excellent drainage options. The U-End allows the creation of vertical steps where the terrace edge is not enclosed.

wind-uplift

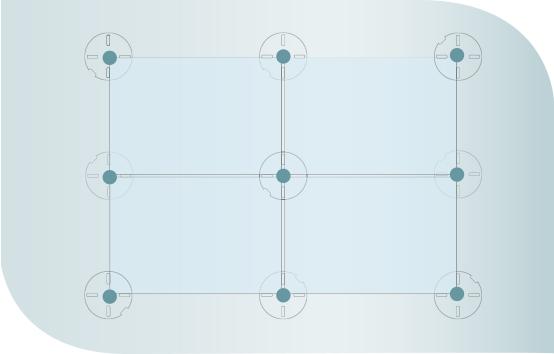

Wind Uplift

In some installs, the potential for wind uplift can be an issue. Our wind resistance disks are used to give extra security by physically locking down pavers to the head of the pedestal.

low-buildup

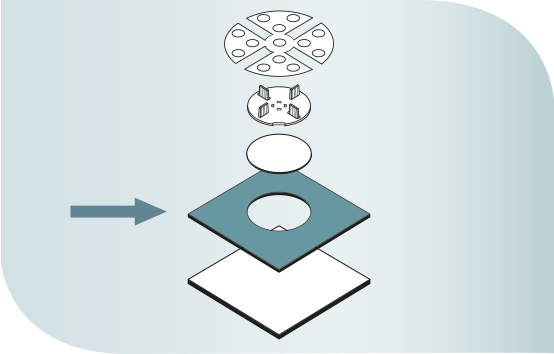

Low Build-Up

These can be used alongside pedestals as part of an install where terrace height is variable and minimal height is required.

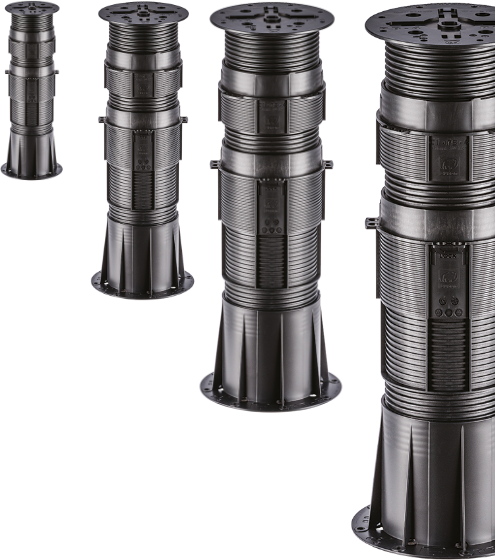

table-bg-img

Average Number of Pedestals Required Per m²*

Dimensions surface area
of the terrace
20 m2
50 m2
100 m2
1000 m2
Length
5
10
10
50
Width
4
5
10
20
Paver format
Pedestals/m2
Pedestals/m2
Pedestals/m2
Pedestals/m2
40 × 40 cm
7.70
7.28
6.76
6.43
50 × 50 cm
4.95
4.62
4.41
4.14
60 × 60 cm
4.00
3.60
3.24
2.94
75 × 75 cm
4.90
4.36
4.21
3.71
80 × 80 cm
4.15
4.06
3.65
3.24
90 × 90 cm
6.00
5.76
5.76
5.15
100 × 100 cm
4.95
4.62
4.41
4.14
120 × 30 cm
7.50
6.48
6.30
5.78
120 × 40 cm
5.50
5.04
4.68
4.34
120 × 60 cm
4.00
3.60
3.24
2.98
90 × 45 cm
6.00
5.76
5.76
5.15
Dimensions surface area
of the terrace
Length
20 m2
5
50 m2
10
100 m2
10
1000 m2
50
Dimensions surface area
of the terrace
Width
20 m2
4
50 m2
5
100 m2
10
1000 m2
20
Paver format
40 × 40 cm
Pedestals/m2
7.70
Pedestals/m2
7.28
Pedestals/m2
6.76
Pedestals/m2
6.43
Paver format
50 × 50 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
60 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.94
Paver format
75 × 75 cm
Pedestals/m2
4.90
Pedestals/m2
4.36
Pedestals/m2
4.21
Pedestals/m2
3.71
Paver format
80 × 80 cm
Pedestals/m2
4.15
Pedestals/m2
4.06
Pedestals/m2
3.65
Pedestals/m2
3.24
Paver format
90 × 90 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Paver format
100 × 100 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
120 × 30 cm
Pedestals/m2
7.50
Pedestals/m2
6.48
Pedestals/m2
6.30
Pedestals/m2
5.78
Paver format
120 × 40 cm
Pedestals/m2
5.50
Pedestals/m2
5.04
Pedestals/m2
4.68
Pedestals/m2
4.34
Paver format
120 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.98
Paver format
90 × 45 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Paver format
Pedestals/m2
40 × 40 cm
7.70
50 × 50 cm
4.95
60 × 60 cm
4.00
75 × 75 cm
4.90
80 × 80 cm
4.15
90 × 90 cm
6.00
100 × 100 cm
4.95
120 × 30 cm
7.50
120 × 40 cm
5.50
120 × 60 cm
4.00
90 × 45 cm
6.00
Paver format
Pedestals/m2
40 × 40 cm
7.28
50 × 50 cm
4.62
60 × 60 cm
3.60
75 × 75 cm
4.36
80 × 80 cm
4.06
90 × 90 cm
5.76
100 × 100 cm
4.62
120 × 30 cm
6.48
120 × 40 cm
5.04
120 × 60 cm
3.60
90 × 45 cm
5.76
Paver format
Pedestals/m2
40 × 40 cm
6.76
50 × 50 cm
4.41
60 × 60 cm
3.24
75 × 75 cm
4.21
80 × 80 cm
3.65
90 × 90 cm
5.76
100 × 100 cm
4.41
120 × 30 cm
6.30
120 × 40 cm
4.68
120 × 60 cm
3.24
90 × 45 cm
5.76
Paver format
Pedestals/m2
40 × 40 cm
6.43
50 × 50 cm
4.14
60 × 60 cm
2.94
75 × 75 cm
3.71
80 × 80 cm
3.24
90 × 90 cm
5.15
100 × 100 cm
4.14
120 × 30 cm
5.78
120 × 40 cm
4.34
120 × 60 cm
2.98
90 × 45 cm
5.15

Disclaimer:
*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
For tile formats larger than 60mm and / or pedestal heights greater than 100mm, additional supporting pedestals per tile may be required. Mesh backing on tiles may also be advisable in these circumstances.
Please contact us if you need further assistance determining quantities or pedestal layout. Note that calculations for large or complex areas will require supporting CAD files and will have a minimum 7 day lead time.
