BC-FR Fire Resistant Adjustable Pedestals for Any Type of Terrace or Raised Floor

Ideal for any project requiring a B fire-rating, the Buzon BC-FR fire-resistant pedestal system has an adjustable height of 11 to 1025mm. The BC-FR decking pedestal comes complete with a full suite of B-rated accessories such as shims, spacer tabs, slope correctors, and edging products.

The fire-resistance properties of all components of the BC-FR range have been tested in accordance with European standards EN 4554-2 (toxicity emission) and EN 13501-1 (smoke density and ease of ignition/fire spread), and the range has been awarded a Bfl-S1 rating.

THE BC-FR pedestal system is perfectly suited for external flooring applications ranging from terraces, patios, decking, paving and any other raised floor which demands a B fire-rating flooring system. The strong and stable pedestals are further supported by the locking system which fixes the pedestal in place, preventing any rotation or height change.

For technical data sheets and further information on the BC-FR pedestal range please visit:

resource-center

Resource Centre

For BC-FR NBS Specifications visit

NBS-plus

NBS Source

For help calculating pedestal requirement for your project please visit:

calculator

Pedestal Calculator

advantages

Advantages

accessories

Accessories

case-study_icon

Case Studies

Brochure

Brochure

BC-FR Pedestals

fire
ALL COMPONENTS FIRE RESISTANT
suitable
SUITABLE FOR USE WITH NON-STANDARD PAVING
height-02
HEIGHT ADJUSTMENT 11-1025MM
slope-2
SLOPE CORRECTIONUP TO 15%

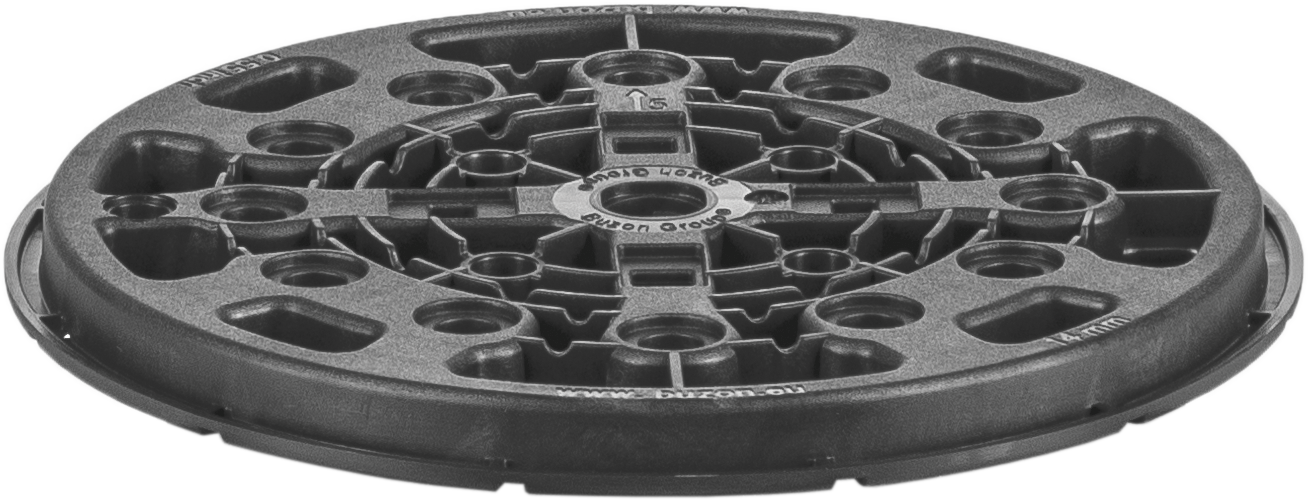

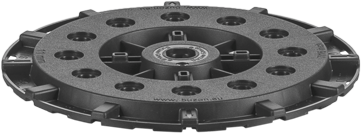

BC-0-FR

BC-0-FR

11mm
View
BC-1-FR

BC-1-FR

14mm
View

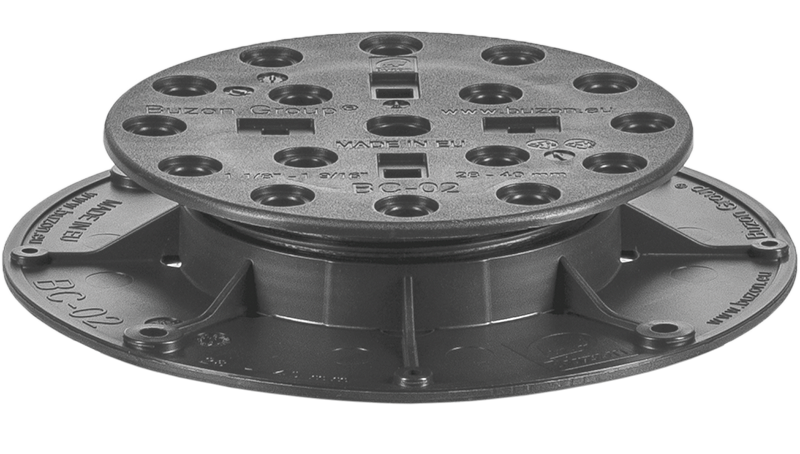

BC-02-FR

BC-02-FR

28-40mm
View

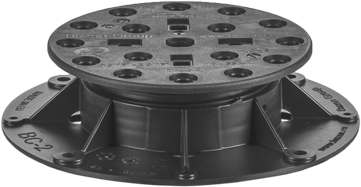

BC-2-FR

BC-2-FR

40-55mm
View

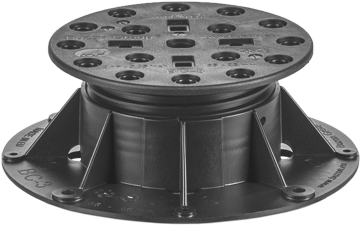

BC-3-FR

BC-3-FR

55-85mm
View
BC-4-FR

BC-4-FR

85-140mm
View
BC-5-FR

BC-5-FR

116-200mm
View
BC-6-FR

BC-6-FR

200-300mm
View

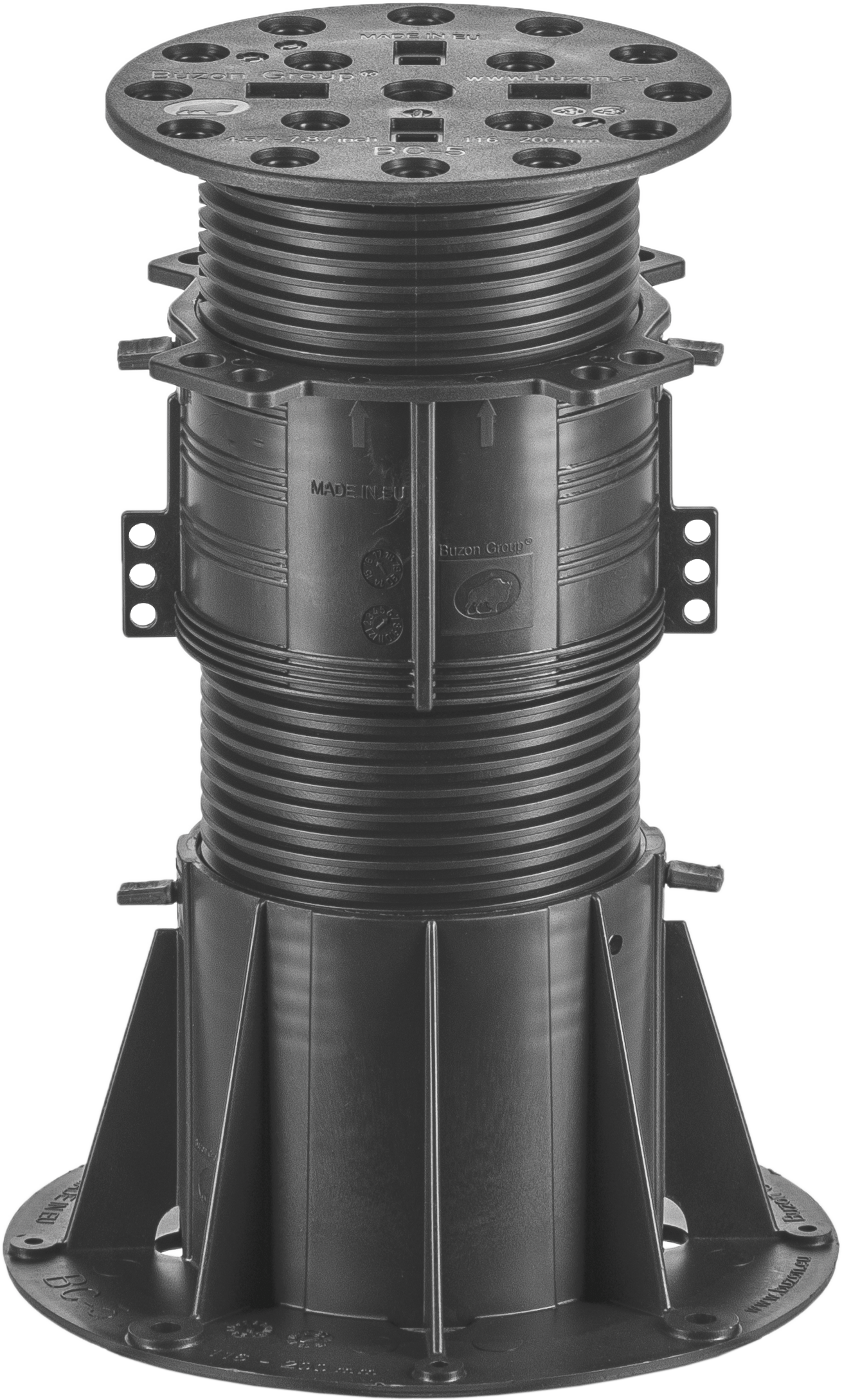

BC-7-FR

BC-7-FR

230-360mm
View
BC-8-FR

BC-8-FR

340-530mm
View

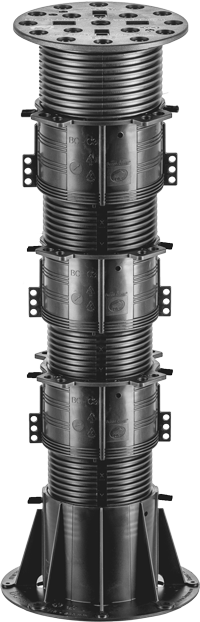

BC-9-FR

BC-9-FR

450-695mm
View

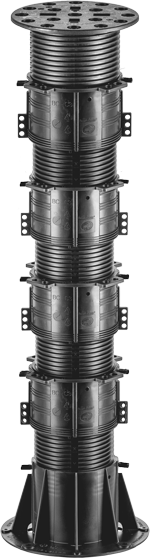

BC-10-FR

BC-10-FR

560-860mm
View

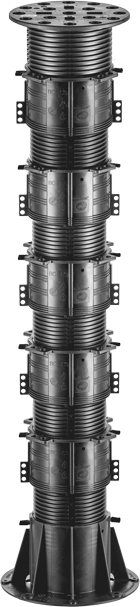

BC-11-FR

BC-11-FR

670-1025mm
View

Advantages of Buzon Pedestals

Rapid Installation
Rapid Installation
Solution
Solutions for all situations
water run off
Rapid excess water run off
project
30 year project warranty
UV & weather
UV & weather resistant
load_bearing
Superior load bearing
Untitled-2
Acoustic & thermal insulation
image2-1
Patented slope corrector
Sustainable
Sustainable materials
technical support
Specialised technical support
Lightweight
Lightweight structure
Conceals-utilities
Conceals utilities

Accessories For The BC-FR Range

We also offer a wide range of accessories to help you create your raised decking. Whatever the project, we have easy and reliable solutions which address many of the problems encountered on construction sites.

bc-fr-spacers-illustration

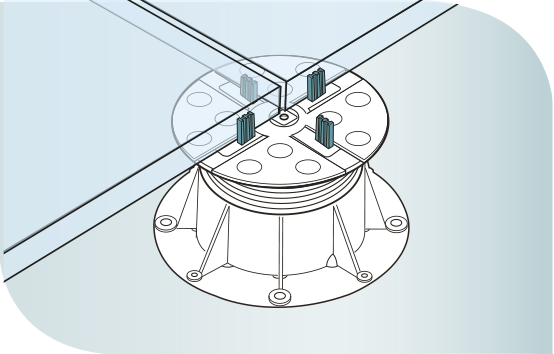

Spacer Tabs

For ultimate flexibility when it comes to separating pavers with odd shapes, curves, etc, the BC-FR range allows rectangular or circular tabs to be placed individually on the pedestal head in a position to suit your design, maintaining perfect alignment and facilitating drainage. The range has spacer tabs in a variety of heights and widths to suit pavers of assorted shapes and sizes, including 20mm porcelain.

bc-fr-shims-illustration

Shims

Shim options are available for the head of the BC-FR pedestal and can be used to aid stability, deaden sound, or to add height either uniformly or to compensate for variations in paver thickness.

bc-fr-slope-corr-illustration

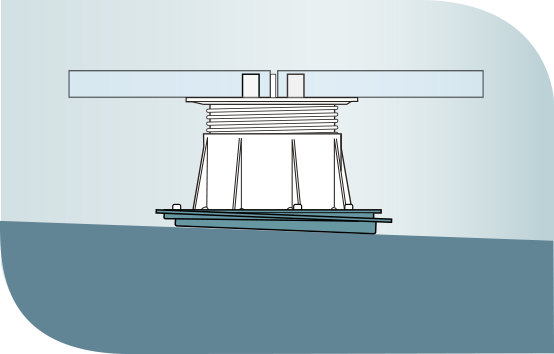

Slope Correction

Whether correcting existing groundworks, or creating ramps and slopes, the BC-FR range has the potential for up to 10% correction to be added to the pedestal base, and a further 5% to the pedestal head. Additional tools allow you to identify the correction required for each pedestal and then perform the perfect adjustment.

bc-fr-joist-suppport

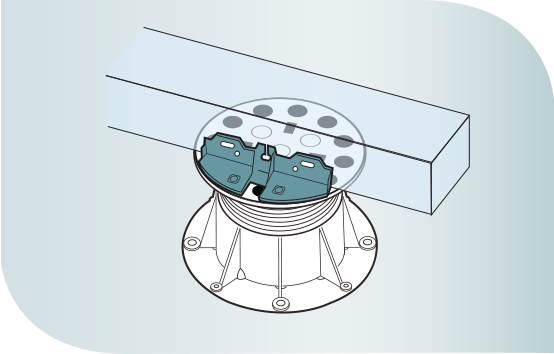

Joist Support

Joist Supports are used to firmly attach fire-rated composite or metal battens to the head of the pedestal.

bc-fr-couplers

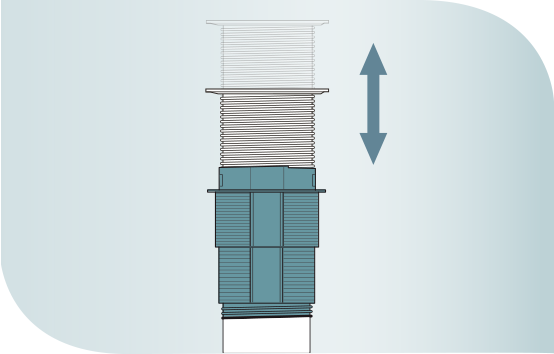

Couplers

If additional height is required for particular pedestal models, Couplers can be a solution. Only supplied on advice - contact us for more information.

bc-fr-edging-illustration

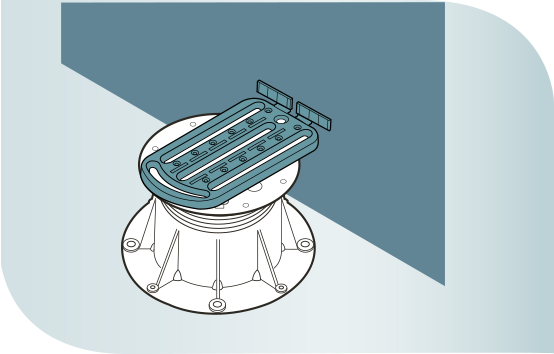

Edging Products

Our U-Wall, U-Edge and ALUgrate products allow clean finishes against walls and provide excellent drainage options. The U-End allows the creation of vertical steps where the terrace edge is not enclosed.

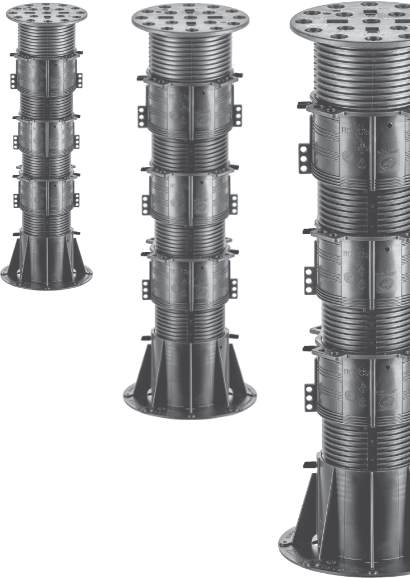

BC-FR Pedestal_img

Average Number of Pedestals Required Per m²*

Dimensions surface area
of the terrace
20 m2
50 m2
100 m2
1000 m2
Length
5
10
10
50
Width
4
5
10
20
Paver format
Pedestals/m2
Pedestals/m2
Pedestals/m2
Pedestals/m2
40 × 40 cm
7.70
7.28
6.76
6.43
50 × 50 cm
4.95
4.62
4.41
4.14
60 × 60 cm
4.00
3.60
3.24
2.94
75 × 75 cm
4.90
4.36
4.21
3.71
80 × 80 cm
4.15
4.06
3.65
3.24
90 × 90 cm
6.00
5.76
5.76
5.15
100 × 100 cm
4.95
4.62
4.41
4.14
120 × 30 cm
7.50
6.48
6.30
5.78
120 × 40 cm
5.50
5.04
4.68
4.34
120 × 60 cm
4.00
3.60
3.24
2.98
90 × 45 cm
6.00
5.76
5.76
5.15
Dimensions surface area
of the terrace
Length
20 m2
5
50 m2
10
100 m2
10
1000 m2
50
Dimensions surface area
of the terrace
Width
20 m2
4
50 m2
5
100 m2
10
1000 m2
20
Paver format
40 × 40 cm
Pedestals/m2
7.70
Pedestals/m2
7.28
Pedestals/m2
6.76
Pedestals/m2
6.43
Paver format
50 × 50 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
60 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.94
Paver format
75 × 75 cm
Pedestals/m2
4.90
Pedestals/m2
4.36
Pedestals/m2
4.21
Pedestals/m2
3.71
Paver format
80 × 80 cm
Pedestals/m2
4.15
Pedestals/m2
4.06
Pedestals/m2
3.65
Pedestals/m2
3.24
Paver format
90 × 90 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Paver format
100 × 100 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
120 × 30 cm
Pedestals/m2
7.50
Pedestals/m2
6.48
Pedestals/m2
6.30
Pedestals/m2
5.78
Paver format
120 × 40 cm
Pedestals/m2
5.50
Pedestals/m2
5.04
Pedestals/m2
4.68
Pedestals/m2
4.34
Paver format
120 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.98
Paver format
90 × 45 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Dimensions surface area
of the terrace
20 m2
Length
5
Width
4
Paver format
Pedestals/m2
40 × 40 cm
7.70
50 × 50 cm
4.95
60 × 60 cm
4.00
75 × 75 cm
4.90
80 × 80 cm
4.15
90 × 90 cm
6.00
100 × 100 cm
4.95
120 × 30 cm
7.50
120 × 40 cm
5.50
120 × 60 cm
4.00
90 × 45 cm
6.00
Dimensions surface area
of the terrace
50 m2
Length
10
Width
5
Paver format
Pedestals/m2
40 × 40 cm
7.28
50 × 50 cm
4.62
60 × 60 cm
3.60
75 × 75 cm
4.36
80 × 80 cm
4.06
90 × 90 cm
5.76
100 × 100 cm
4.62
120 × 30 cm
6.48
120 × 40 cm
5.04
120 × 60 cm
3.60
90 × 45 cm
5.76
Dimensions surface area
of the terrace
100 m2
Length
10
Width
10
Paver format
Pedestals/m2
40 × 40 cm
6.76
50 × 50 cm
4.41
60 × 60 cm
3.24
75 × 75 cm
4.21
80 × 80 cm
3.65
90 × 90 cm
5.76
100 × 100 cm
4.41
120 × 30 cm
6.30
120 × 40 cm
4.68
120 × 60 cm
3.24
90 × 45 cm
5.76
Dimensions surface area
of the terrace
1000 m2
Length
50
Width
20
Paver format
Pedestals/m2
40 × 40 cm
6.43
50 × 50 cm
4.14
60 × 60 cm
2.94
75 × 75 cm
3.71
80 × 80 cm
3.24
90 × 90 cm
5.15
100 × 100 cm
4.14
120 × 30 cm
5.78
120 × 40 cm
4.34
120 × 60 cm
2.98
90 × 45 cm
5.15

Disclaimer:
*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
For tile formats larger than 60mm and / or pedestal heights greater than 100mm, additional supporting pedestals per tile may be required. Mesh backing on tiles may also be advisable in these circumstances.
Please contact us if you need further assistance determining quantities or pedestal layout. Note that calculations for large or complex areas will require supporting CAD files and will have a minimum 7 day lead time.
