BC Adjustable Pedestals for Any Type of Terrace or Raised Floor

The Buzon BC decking and paving supports are perfect for creating terraces and patios offering ultimate flexibility and design creativity. BC pedestals have an adjustable height of 11 to 1130mm plus a multi-angle head and are suited to a range of joint and slab dimensions, allowing them to be used with non-standard paving slabs.

These decking pedestals offer a unique spacer tab option to separate pavers, inspiring creative architecture with unlimited potential. Unusual shapes and curves are facilitated through the use of rectangular and circular tabs that can be individually positioned to suit your design.

The BC range of adjustable decking supports is ideal for external flooring areas which need a strong and secure fixed raised floor pedestal system due to its locking system which prevents the pedestals from rotating or moving from their specified height.

For technical data sheets and further information on the BC pedestal range please visit:

resource-center

Resource Centre

For BC Pedestal NBS Specifications visit
NBS Source:

NBS-plus

NBS Source

For help calculating pedestal requirement for your project please visit:

calculator

Pedestal Calculator

advantages

Advantages

accessories

Accessories

case-study_icon

Case Studies

Brochure

Brochure

BC Pedestals

suitable
SUITABLE FOR USE WITHNON-STANDARD PAVING
height
HEIGHT ADJUSTMENT 11-1130MM
slope-2
SLOPE CORRECTION UP TO 15%

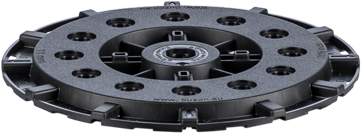

BC-0

BC-0

11mm
View

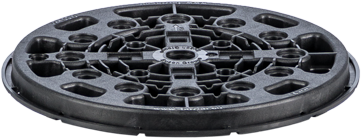

BC-1

BC-1

14mm
View

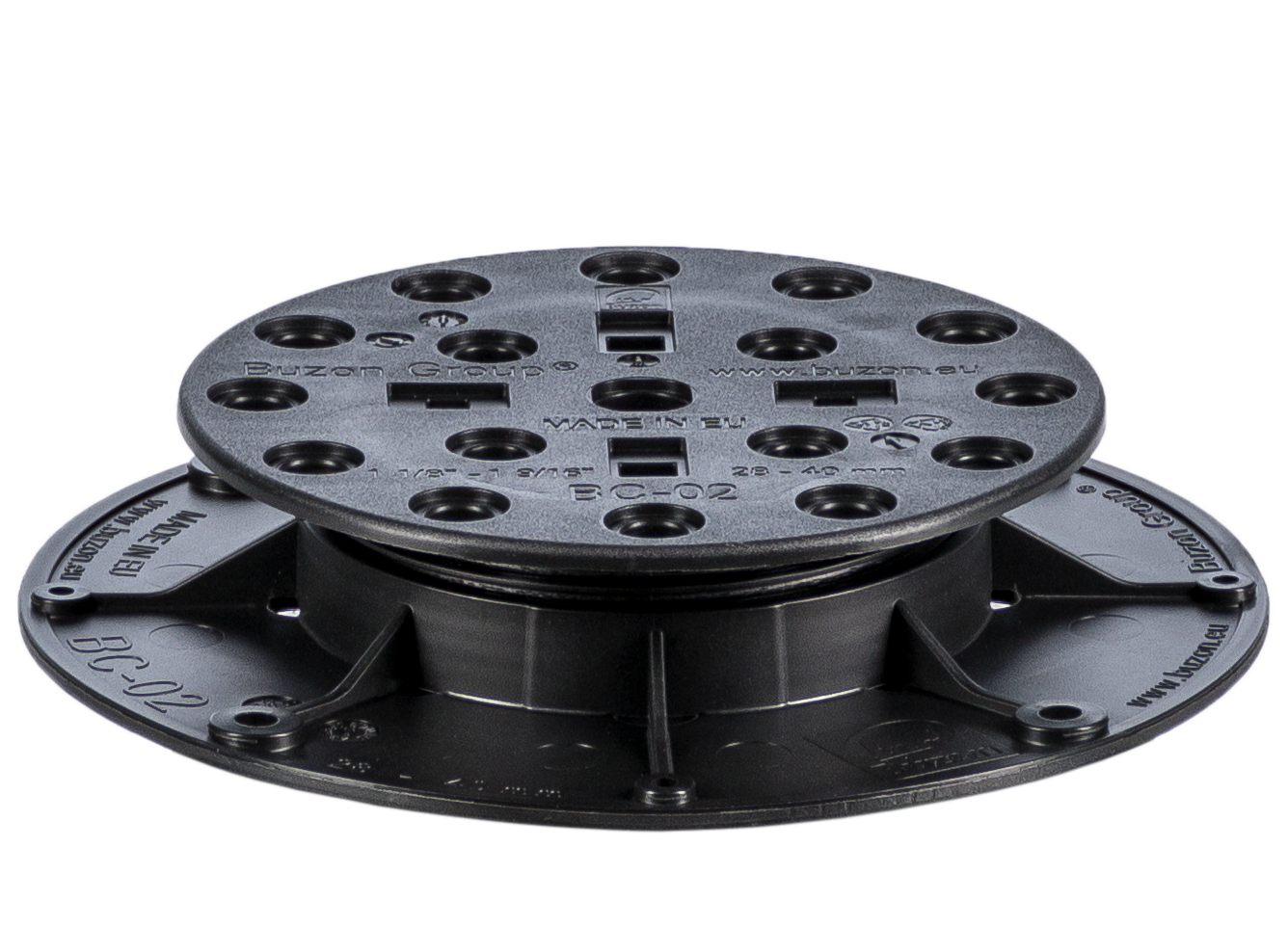

BC-02

BC-02

28-40mm
View

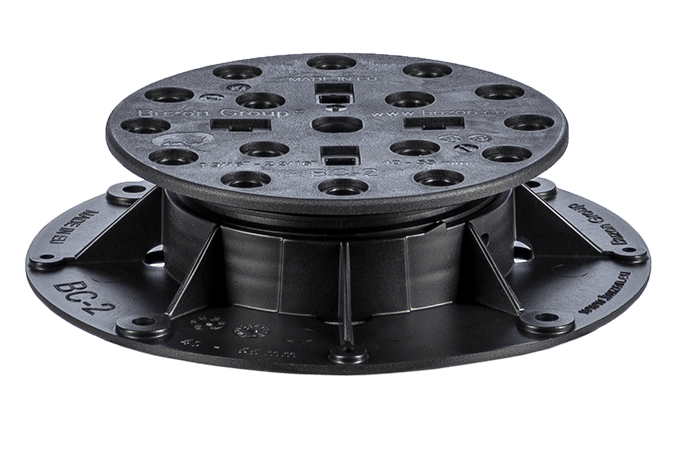

BC-2

BC-2

40-55mm
View

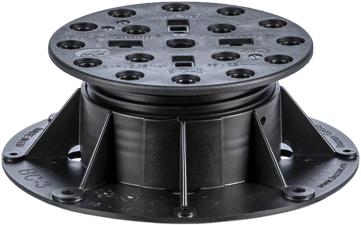

BC-3

BC-3

55-85mm
View
BC-4

BC-4

85-140mm
View
BC-5

BC-5

116-200mm
View

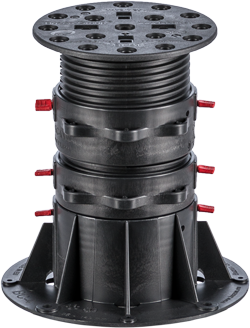

BC-6-INV

BC-6-INV

198-240mm
View

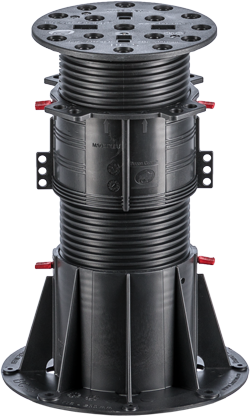

BC-7

BC-7

230-360mm
View

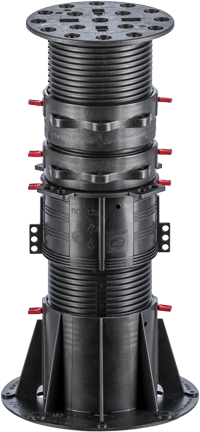

BC-8-INV

BC-8-INV

342-465mm
View

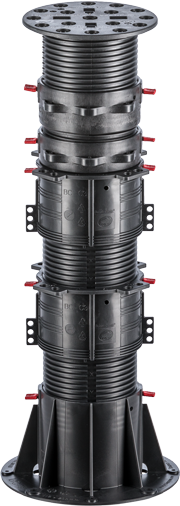

BC-9-INV

BC-9-INV

452-630mm
View

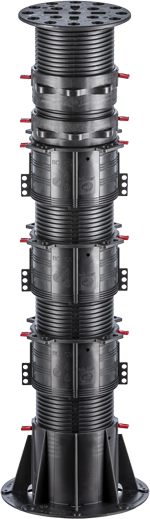

BC-10-INV

BC-10-INV

562-795mm
View

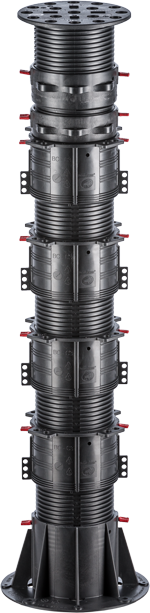

BC-11-INV

BC-11-INV

672-965mm
View

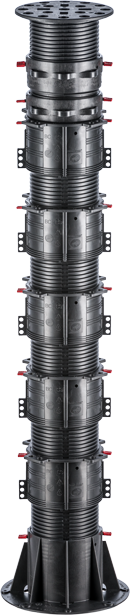

BC-12-INV

BC-12-INV

782-1130mm
View

Advantages of Buzon Pedestals

Rapid Installation
Rapid Installation
Solution
Solutions for all situations
water run off
Rapid excess water run off
project
30 year project warranty
UV & weather
UV & weather resistant
load_bearing
Superior load bearing
Untitled-2
Acoustic & thermal insulation
image2-1
Patented slope corrector
Sustainable
Sustainable materials
technical support
Specialised technical support
Lightweight
Lightweight structure
Conceals-utilities
Conceals utilities

Accessories for the BC Range

We also offer a wide range of accessories to help you create your raised decking. Whatever the project, we have easy and reliable solutions which address many of the problems encountered on construction sites.

bc-spacers-illustration

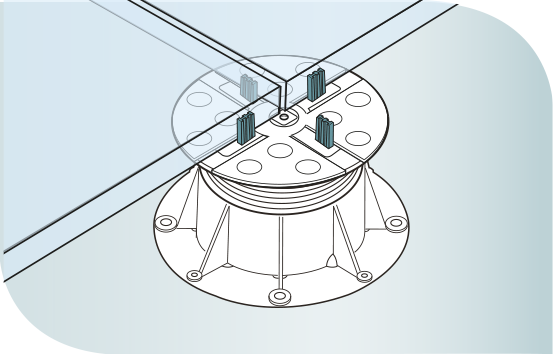

Spacer Tabs

For ultimate flexibility when it comes to separating pavers with odd shapes, curves, etc, the BC range allows rectangular or circular tabs to be placed individually on the pedestal head in a position to suit your design, maintaining perfect alignment and facilitating drainage. The BC range has spacer tabs in a variety of heights and widths to suit pavers of assorted shapes and sizes, including 20mm porcelain.

bc-shims-illustration

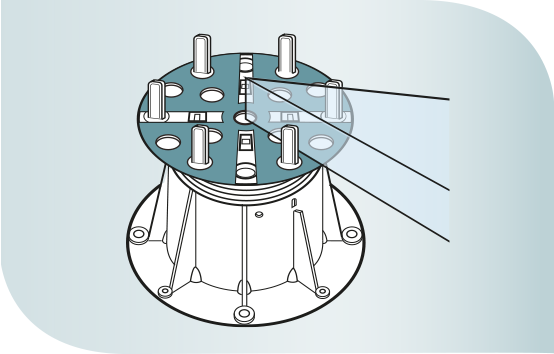

Shims

Shim options are available for the head or the base of the BC pedestal and can be used to aid stability, deaden sound, or to add height either uniformly or to compensate for variations in paver thickness.

bc-slope-corr-illustration

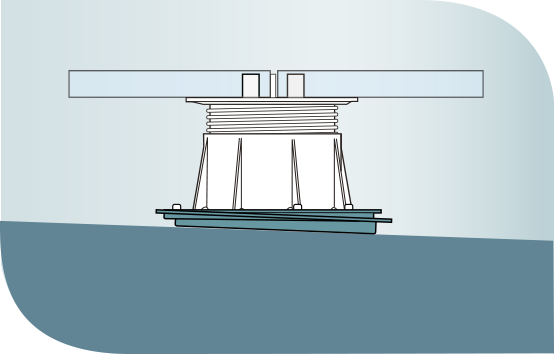

Slope Correction

Whether correcting existing groundworks, or creating ramps and slopes, the BC range has the potential for up to 10% correction to be added to the pedestal base, and a further 5% to the pedestal head. Additional tools allow you to identify the correction required for each pedestal and then perform the perfect adjustment.

bc-membrane-illustration

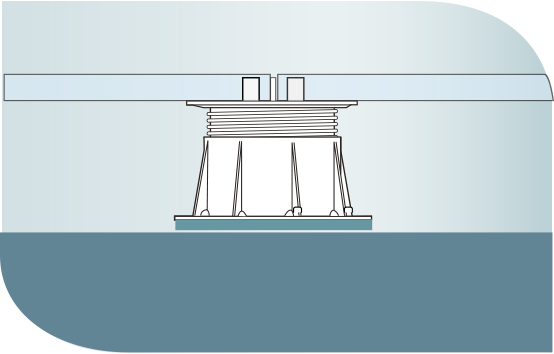

Membrane Protection

This acoustic pad sits under the pedestal to help deaden sound, whilst providing that little extra protection in more demanding environments. We offer two different thicknesses as standard.

bc-joist-suppport

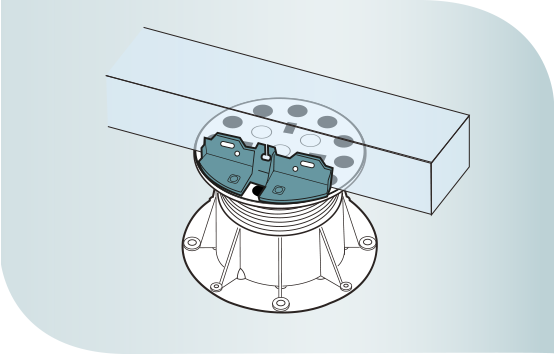

Joist Support

Joist Supports are used to firmly attach timber, composite or metal battens to the head of the pedestal.

bc-couplers

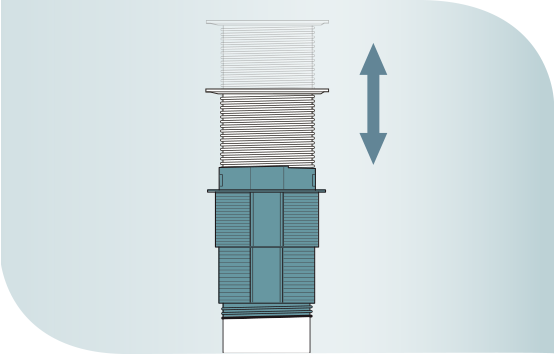

Couplers

If additional height is required for particular pedestal models, Couplers can be a solution. Only supplied on advice - contact us for more information.

bc-edging-illustration

Edging Products

Our U-Wall, U-Edge and ALUgrate products allow clean finishes against walls and provide excellent drainage options. The U-End allows the creation of vertical steps where the terrace edge is not enclosed.

bc-winduplift-illustration

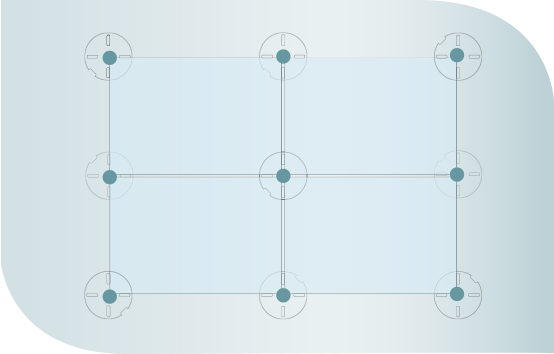

Wind Uplift

In some installs, the potential for wind uplift can be an issue. Our wind resistance discs are used to give extra security by physically locking down pavers to the head of the pedestal.

bc-low-buildup-illustration

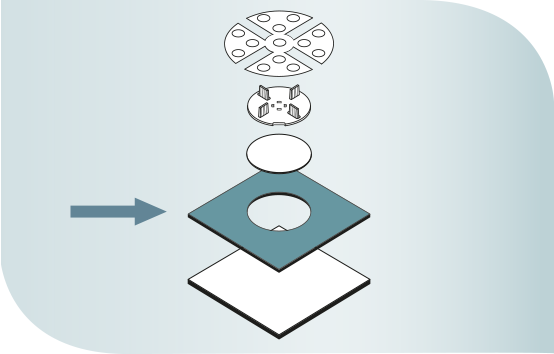

Low Build-Up

These can be used alongside pedestals as part of an install where terrace height is variable and minimal height is required.

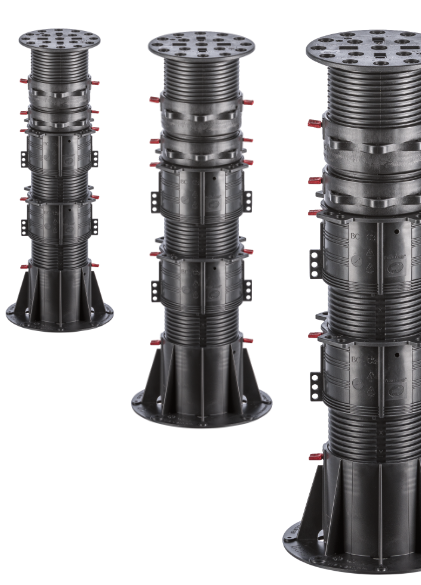

bc-3

The Average Number of Pedestals Required Per m²*

Dimensions surface area
of the terrace
20 m2
50 m2
100 m2
1000 m2
Length
5
10
10
50
Width
4
5
10
20
Paver format
Pedestals/m2
Pedestals/m2
Pedestals/m2
Pedestals/m2
40 × 40 cm
7.70
7.28
6.76
6.43
50 × 50 cm
4.95
4.62
4.41
4.14
60 × 60 cm
4.00
3.60
3.24
2.94
75 × 75 cm
4.90
4.36
4.21
3.71
80 × 80 cm
4.15
4.06
3.65
3.24
90 × 90 cm
6.00
5.76
5.76
5.15
100 × 100 cm
4.95
4.62
4.41
4.14
120 × 30 cm
7.50
6.48
6.30
5.78
120 × 40 cm
5.50
5.04
4.68
4.34
120 × 60 cm
4.00
3.60
3.24
2.98
90 × 45 cm
6.00
5.76
5.76
5.15
Dimensions surface area
of the terrace
Length
20 m2
5
50 m2
10
100 m2
10
1000 m2
50
Dimensions surface area
of the terrace
Width
20 m2
4
50 m2
5
100 m2
10
1000 m2
20
Paver format
40 × 40 cm
Pedestals/m2
7.70
Pedestals/m2
7.28
Pedestals/m2
6.76
Pedestals/m2
6.43
Paver format
50 × 50 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
60 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.94
Paver format
75 × 75 cm
Pedestals/m2
4.90
Pedestals/m2
4.36
Pedestals/m2
4.21
Pedestals/m2
3.71
Paver format
80 × 80 cm
Pedestals/m2
4.15
Pedestals/m2
4.06
Pedestals/m2
3.65
Pedestals/m2
3.24
Paver format
90 × 90 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Paver format
100 × 100 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
120 × 30 cm
Pedestals/m2
7.50
Pedestals/m2
6.48
Pedestals/m2
6.30
Pedestals/m2
5.78
Paver format
120 × 40 cm
Pedestals/m2
5.50
Pedestals/m2
5.04
Pedestals/m2
4.68
Pedestals/m2
4.34
Paver format
120 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.98
Paver format
90 × 45 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Dimensions surface area
of the terrace
20 m2
Length
5
Width
4
Paver format
Pedestals/m2
40 × 40 cm
7.70
50 × 50 cm
4.95
60 × 60 cm
4.00
75 × 75 cm
4.90
80 × 80 cm
4.15
90 × 90 cm
6.00
100 × 100 cm
4.95
120 × 30 cm
7.50
120 × 40 cm
5.50
120 × 60 cm
4.00
90 × 45 cm
6.00
Dimensions surface area
of the terrace
50 m2
Length
10
Width
5
Paver format
Pedestals/m2
40 × 40 cm
7.28
50 × 50 cm
4.62
60 × 60 cm
3.60
75 × 75 cm
4.36
80 × 80 cm
4.06
90 × 90 cm
5.76
100 × 100 cm
4.62
120 × 30 cm
6.48
120 × 40 cm
5.04
120 × 60 cm
3.60
90 × 45 cm
5.76
Dimensions surface area
of the terrace
100 m2
Length
10
Width
10
Paver format
Pedestals/m2
40 × 40 cm
6.76
50 × 50 cm
4.41
60 × 60 cm
3.24
75 × 75 cm
4.21
80 × 80 cm
3.65
90 × 90 cm
5.76
100 × 100 cm
4.41
120 × 30 cm
6.30
120 × 40 cm
4.68
120 × 60 cm
3.24
90 × 45 cm
5.76
Dimensions surface area
of the terrace
1000 m2
Length
50
Width
20
Paver format
Pedestals/m2
40 × 40 cm
6.43
50 × 50 cm
4.14
60 × 60 cm
2.94
75 × 75 cm
3.71
80 × 80 cm
3.24
90 × 90 cm
5.15
100 × 100 cm
4.14
120 × 30 cm
5.78
120 × 40 cm
4.34
120 × 60 cm
2.98
90 × 45 cm
5.15

Disclaimer:
*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
For tile formats larger than 60mm and / or pedestal heights greater than 100mm, additional supporting pedestals per tile may be required. Mesh backing on tiles may also be advisable in these circumstances.
Please contact us if you need further assistance determining quantities or pedestal layout. Note that calculations for large or complex areas will require supporting CAD files and will have a minimum 7 day lead time.
