The Buzon ALUrail System for Outdoor Raised Floors

The ALUrail range for outdoor raised floors is a rail-based system that provides a simple solution to exceptional areas with technical challenges, whether it be an irregular shaped balcony or other site-specific requirement.

The full system build-up comprises of an aluminium joist supported by adjustable pedestals from the Buzon ranges, and a choice of accessories depending on your chosen application, whether it be paving or decking on a podium, balcony or roof terrace.

Practical and functional, the ALUrail system can also be used where the void is limited. The system , including pedestals, starts at 35mm.

For technical data sheets and further information on the ALUrail range please visit:

resource-center

Resource Centre

For ALUrail NBS Specifications visit:

NBS-plus

NBS Source

For help calculating pedestal requirement for your project please visit:

calculator

Pedestal Calculator

advantages

Advantages

accessories

Accessories

case-studies

Case Studies

Brochure

Brochure

Video

Downloads

brochure

Brochure

ALUrail

red-eatwall
ALLOWS FOR RANDOM & STAGGERED PAVERS
images-2
IDEALLY SUITED FOR TIGHT ANGULAR SPACES
contineus-support
CONTINUOUS SUPPORT INCLUDING CANTILEVERS
u-brs-24mm-ALUrail-buzon

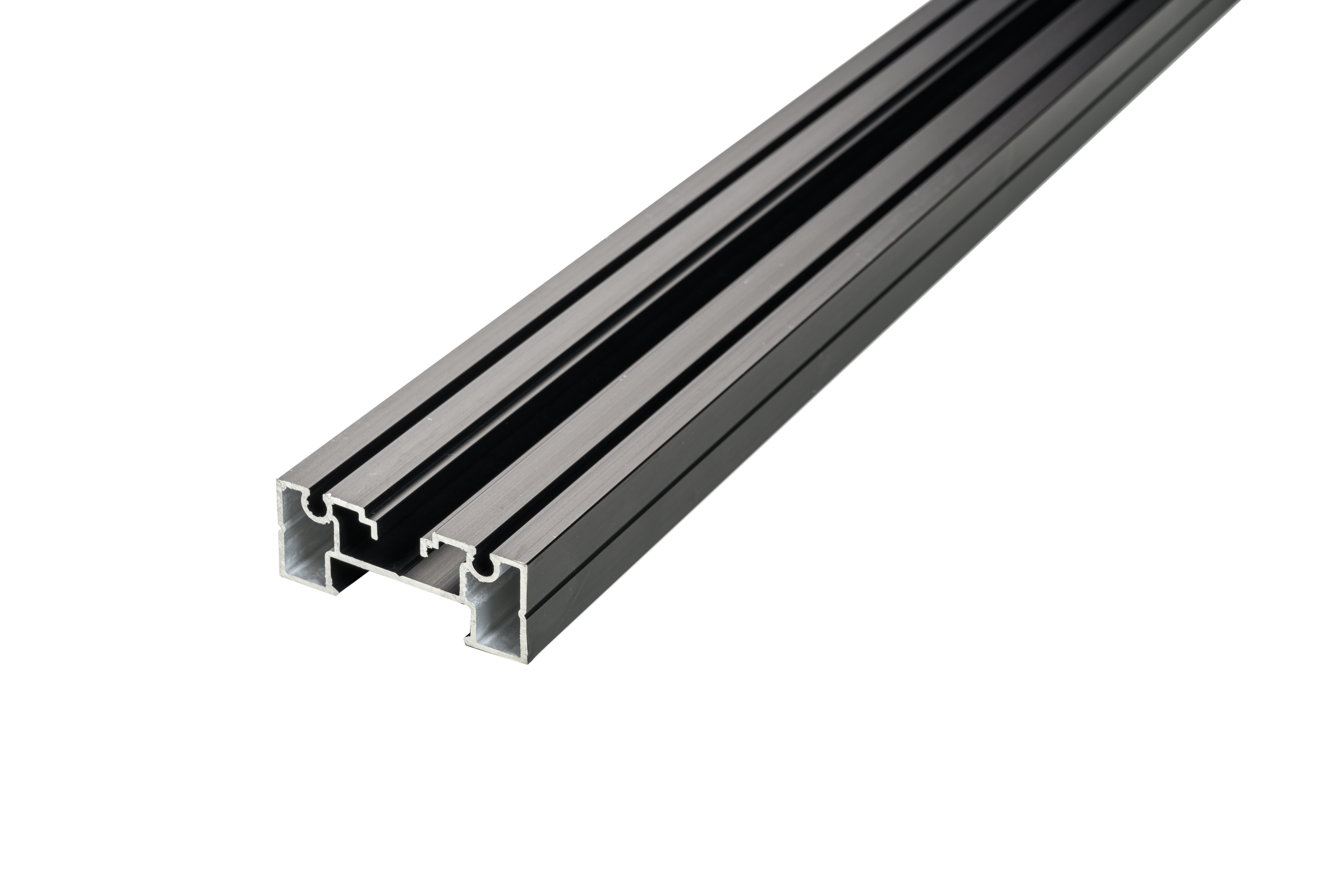

U-BRS-24MM-B for paving

24mm
View
u-brs-38mm-ALUrail-Buzon

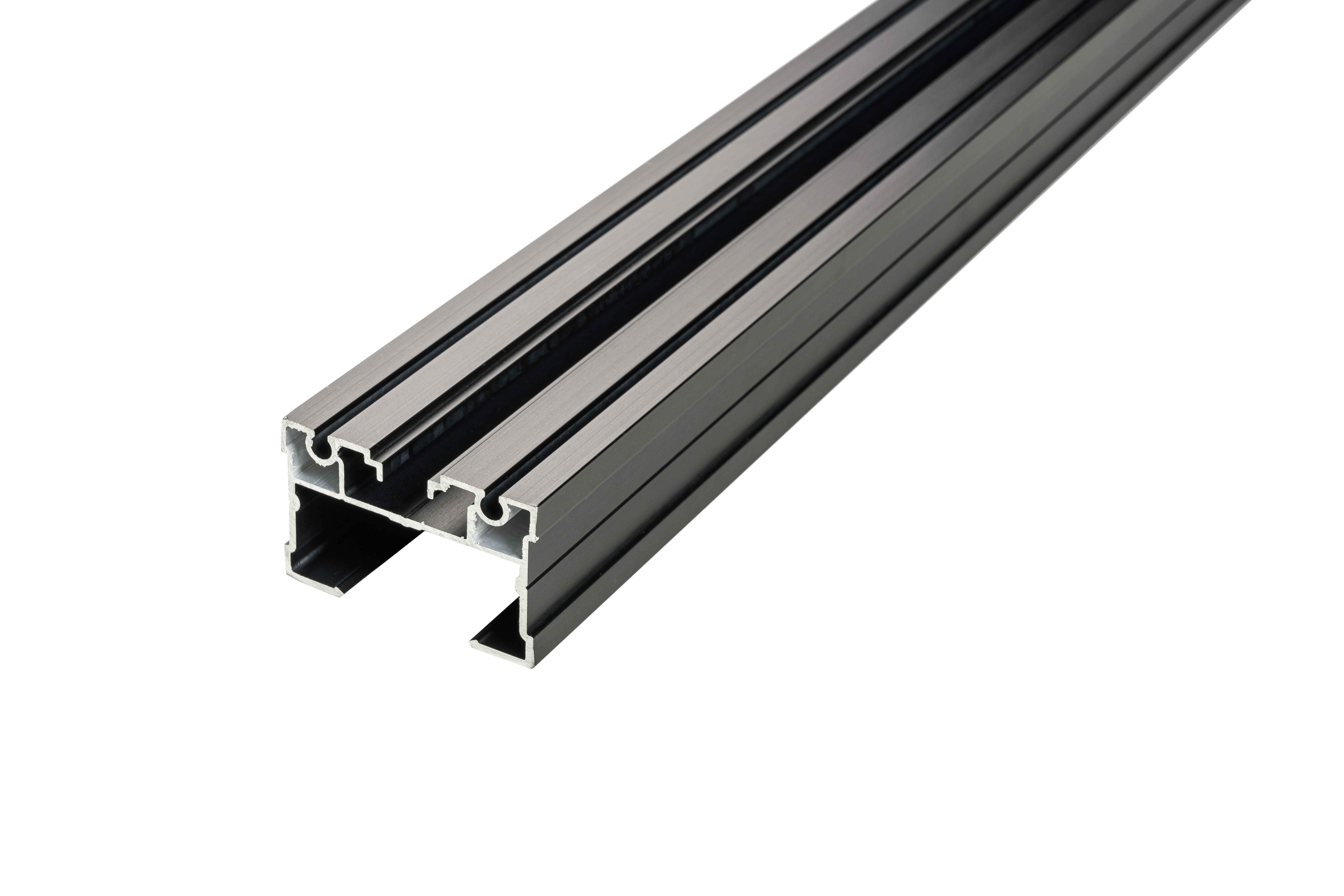

U-BRS-38MM-B for paving

38mm
View

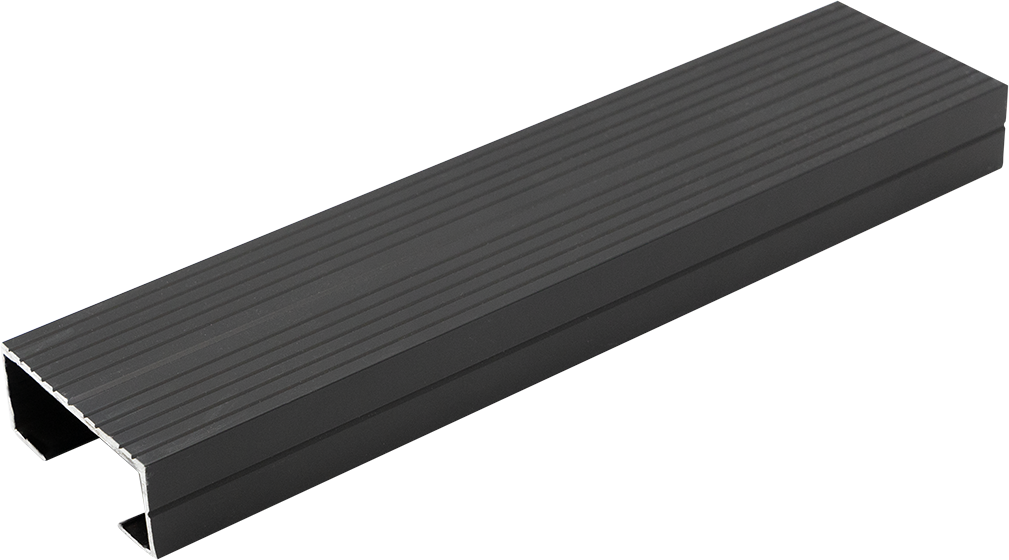

U-BRS-24M-W-B for decking

24mm
View

Advantages of Buzon Pedestals

Rapid Installation
Rapid Installation
Solution
Solutions for all situations
water run off
Rapid excess water run off
project
30 year project warranty
UV & weather
UV & weather resistant
load_bearing
Superior load bearing
Untitled-2
Acoustic & thermal insulation
image2-1
Patented slope corrector
Sustainable
Sustainable materials
technical support
Specialised technical support
Lightweight
Lightweight structure
Conceals-utilities
Conceals utilities

Accessories for ALUrail

We also offer a wide range of accessories to help you create your raised decking. Whatever the project, we have easy and reliable solutions which address many of the problems encountered on construction sites.

alurail-spacer-illustration

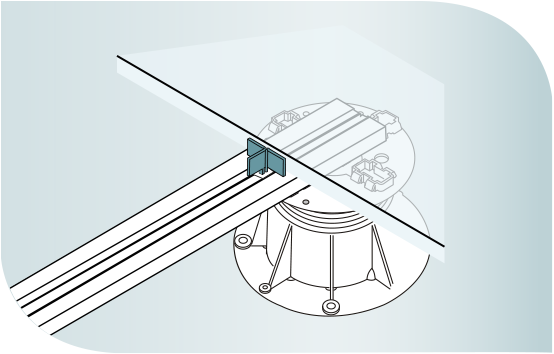

Spacer Tabs

Attached to the UBRS ALUrail aluminium joist, Spacer Tabs separate pavers maintaining perfect alignment and facilitating drainage.

alurail-connectors-illustration

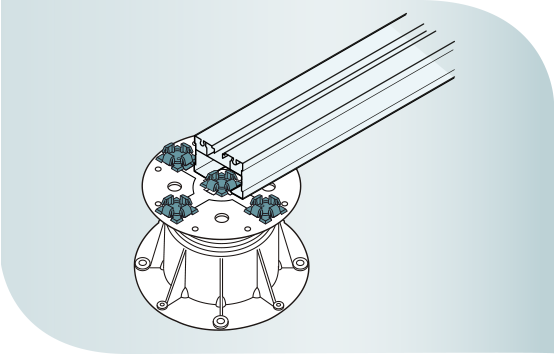

Connectors

Allowing for connections between rails to fix securely, Connectors fix the rail to the head of the pedestal. The positioning of the connectors allows a single rail to go directly across the Connector plate, or allow several rails to converge at various angles.

alurail-edging-illustration

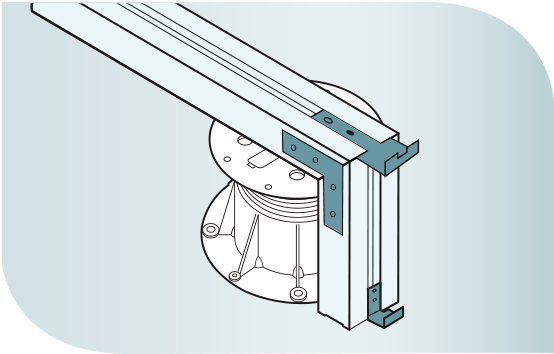

Edging Products

Our ALUgrate product provides excellent drainage preventing splashback against walls, doors and windows. Where terrace edges are not enclosed by walls, the U-End can be used to create a vertical façade or step.

table-bg-img

Average Number of Products Required Per m²*

AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 60 cm) B
Dimensions surface area of the laying plan
10 m2
50 m2
Length
5
10
Width
2
5
Quantity of
pcs/m2
pcs/m2
U-BRS-24 / U-BRS-38
0.8
0.7
U-BRS EPDM 2 mm
1.6
1.4
U-BRS-TABS-N
20 x 120 cm pavers
9.4
9.1
30 x 120 cm pavers
6.2
6.0
40 x 120 cm pavers
4.6
4.5
60 x 120 cm pavers
3.6
3.3
120 x 120 cm pavers
0.6
0.4
U-BRS-STOP-N
1.2
0.8
Pedestals (centre distance 60 cm) A
4.00
3.4
Pedestals (centre distance 80 cm) A
3.2
2.8
AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 40 cm) B
Dimensions surface area of the laying plan
10 m2
50 m2
Length
5
10
Width
2
5
Quantity of
pcs/m2
pcs/m2
U-BRS-24 / U-BRS-38
1.2
1.1
U-BRS EPDM 2 mm
2.4
2.2
U-BRS-TABS-N
20 x 120 cm pavers
11.3
11.0
30 x 120 cm pavers
7.5
7.2
40 x 120 cm pavers
5.5
5.4
80 x 80 cm pavers
2.4
1.9
60 x 120 cm pavers
4.3
4.0
U-BRS-STOP-N
1.2
0.8
Pedestals (centre distance 60 cm) A
6.0
4.9
Pedestals (centre distance 80 cm) A
4.8
4.1
AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 45 cm) B
Dimensions surface area of the laying plan
10 m2
50 m2
Length
5
10
Width
2
5
Quantity of
pcs/m2
pcs/m2
U-BRS-24 / U-BRS-38
1.2
1
U-BRS EPDM 2 mm
2.4
2
U-BRS-TABS-N
45 x 90 cm pavers
5.2
4.8
90 x 90 cm pavers
1.2
1.0
U-BRS-STOP-N
1.3
1.0
Pedestals (centre distance 60 cm) A
5.5
4.6
Pedestals (centre distance 80 cm) A
4.4
3.7
AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 50 cm) B
Dimensions surface area of the laying plan
10 m2
50 m2
Length
5
10
Width
2
5
Quantity of
pcs/m2
pcs/m2
U-BRS-24 / U-BRS-38
1
0.9
U-BRS EPDM 2 mm
2
1.8
U-BRS-TABS-N
50 x 50 cm pavers
5.6
4.8
50 x 100 cm pavers
2.6
2.4
100 x 100 cm pavers
1.0
0.8
U-BRS-STOP-N
1.0
0.8
Pedestals (centre distance 60 cm) A
5.00
4.2
Pedestals (centre distance 80 cm) A
4.0
3.3
AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 60 cm) B
Dimensions surface area of the laying plan
Length
10 m2
5
50 m2
10
Dimensions surface area of the laying plan
Width
10 m2
2
50 m2
5
Quantity of
U-BRS-24 / U-BRS-38
pcs/m2
0.8
pcs/m2
0.7
Quantity of
U-BRS EPDM 2 mm
pcs/m2
1.6
pcs/m2
1.4
Quantity of
U-BRS-TABS-N
pcs/m2
pcs/m2
Quantity of
20 x 120 cm pavers
pcs/m2
9.4
pcs/m2
9.1
Quantity of
30 x 120 cm pavers
pcs/m2
6.2
pcs/m2
6.0
Quantity of
40 x 120 cm pavers
pcs/m2
4.6
pcs/m2
4.5
Quantity of
60 x 120 cm pavers
pcs/m2
3.6
pcs/m2
3.3
Quantity of
120 x 120 cm pavers
pcs/m2
0.6
pcs/m2
0.4
Quantity of
U-BRS-STOP-N
pcs/m2
1.2
pcs/m2
0.8
Quantity of
Pedestals (centre distance 60 cm)
pcs/m2
4.00
pcs/m2
3.4
Quantity of
Pedestals (centre distance 80 cm)
pcs/m2
3.2
pcs/m2
2.8
AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 40 cm) B
Dimensions surface area of the laying plan
Length
10 m2
5
50 m2
10
Dimensions surface area of the laying plan
Width
10 m2
2
50 m2
5
Quantity of
U-BRS-24 / U-BRS-38
pcs/m2
1.2
pcs/m2
1.1
Quantity of
U-BRS EPDM 2 mm
pcs/m2
2.4
pcs/m2
2.2
Quantity of
U-BRS-TABS-N
pcs/m2
pcs/m2
Quantity of
20 x 120 cm pavers
pcs/m2
11.3
pcs/m2
11.0
Quantity of
30 x 120 cm pavers
pcs/m2
7.5
pcs/m2
7.2
Quantity of
40 x 120 cm pavers
pcs/m2
5.5
pcs/m2
5.4
Quantity of
80 x 80 cm pavers
pcs/m2
2.4
pcs/m2
1.9
Quantity of
60 x 120 cm pavers
pcs/m2
4.3
pcs/m2
4.0
Quantity of
U-BRS-STOP-N
pcs/m2
1.2
pcs/m2
0.8
Quantity of
Pedestals (centre distance 60 cm)
pcs/m2
6.0
pcs/m2
4.9
Quantity of
Pedestals (centre distance 80 cm)
pcs/m2
4.8
pcs/m2
4.1
AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 45 cm) B
Dimensions surface area of the laying plan
Length
10 m2
5
50 m2
10
Dimensions surface area of the laying plan
Width
10 m2
2
50 m2
5
Quantity of
U-BRS-24 / U-BRS-38
pcs/m2
1.2
pcs/m2
1
Quantity of
U-BRS EPDM 2 mm
pcs/m2
2.4
pcs/m2
2
Quantity of
U-BRS-TABS-N
pcs/m2
pcs/m2
Quantity of
45 x 90 cm pavers
pcs/m2
5.2
pcs/m2
4.8
Quantity of
90 x 90 cm pavers
pcs/m2
1.2
pcs/m2
1.0
Quantity of
U-BRS-STOP-N
pcs/m2
1.3
pcs/m2
1.0
Quantity of
Pedestals (centre distance 60 cm)
pcs/m2
5.5
pcs/m2
4.6
Quantity of
Pedestals (centre distance 80 cm)
pcs/m2
4.4
pcs/m2
3.7
AVERAGE QUANTITY OF JOISTS, PEDESTALS AND ACCESSORIES (joist centre distance 50 cm) B
Dimensions surface area of the laying plan
Length
10 m2
5
50 m2
10
Dimensions surface area of the laying plan
Width
10 m2
2
50 m2
5
Quantity of
U-BRS-24 / U-BRS-38
pcs/m2
1
pcs/m2
0.9
Quantity of
U-BRS EPDM 2 mm
pcs/m2
2
pcs/m2
1.8
Quantity of
U-BRS-TABS-N
pcs/m2
pcs/m2
Quantity of
50 x 50 cm pavers
pcs/m2
5.6
pcs/m2
4.8
Quantity of
50 x 100 cm pavers
pcs/m2
2.6
pcs/m2
2.4
Quantity of
100 x 100 cm pavers
pcs/m2
1.0
pcs/m2
0.8
Quantity of
U-BRS-STOP-N
pcs/m2
1.0
pcs/m2
0.8
Quantity of
Pedestals (centre distance 60 cm)
pcs/m2
5.00
pcs/m2
4.2
Quantity of
Pedestals (centre distance 80 cm)
pcs/m2
4.0
pcs/m2
3.3

Disclaimer:
*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
For tile formats larger than 60mm and / or pedestal heights greater than 1 00mm, additional supporting pedestals per tile may be required. Mesh backing on tiles may also be advisable in these circumstances.
Please contact us if you need further assistance determining quantities or pedestal layout. Note that calculations for large or complex areas will require supporting CAD files and will have a minimum 7 day lead time.
