A-PED A1 Fire-Rated Adjustable Pedestals For Non-Combustible Terraces And Raised Floors

The first non-combustible paving and decking pedestal from Buzon. Made from recycled aluminium and zinc-coated steel, the A-PED is Class A1 fire-rated and adjustable from 24mm to 395mm.

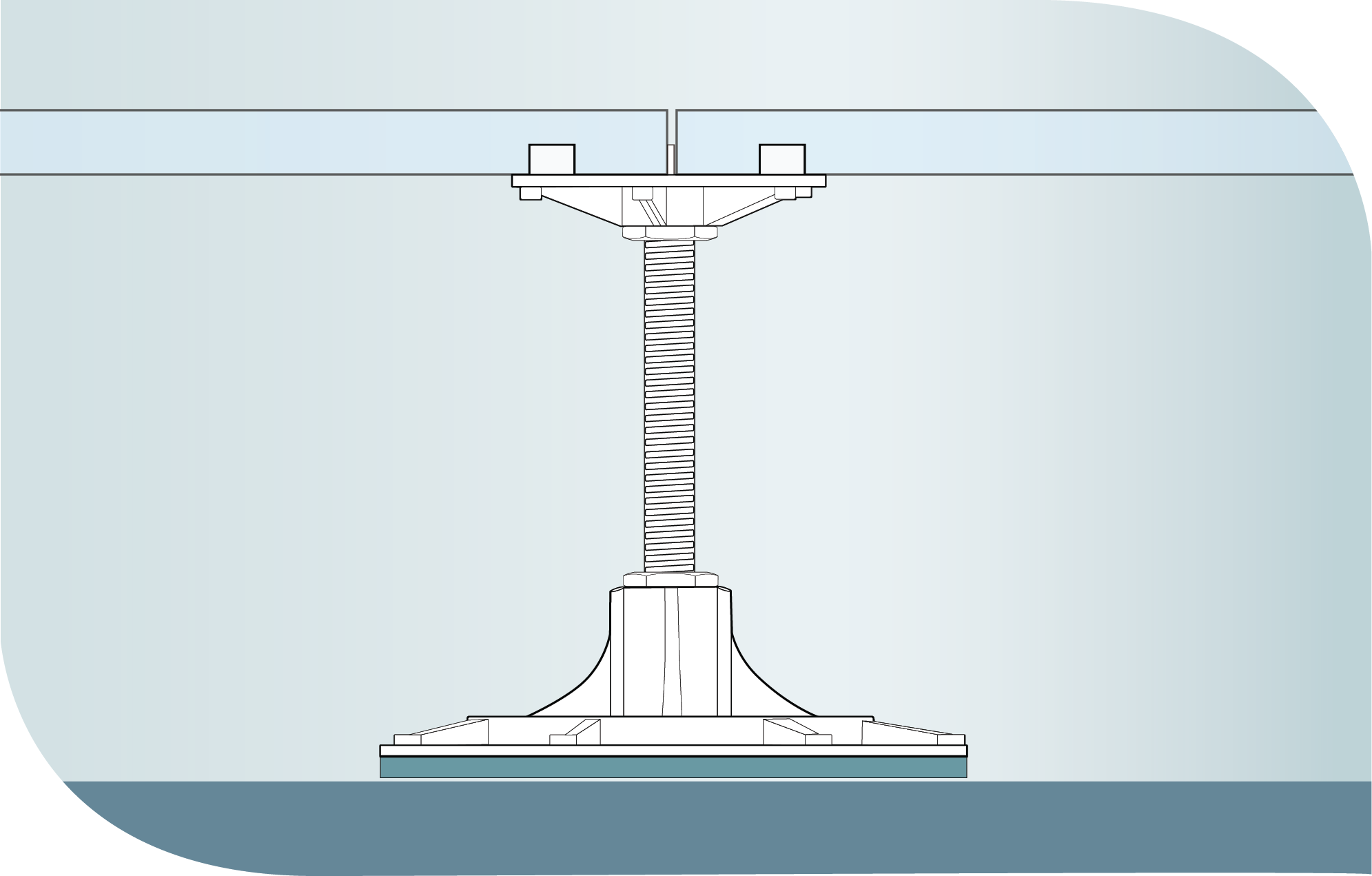

As the most advanced Class A1 fire-rated pedestal available on the market, it has an integrated slope corrector which allows up to 5% of millimetre-precise correction - features that make it compatible with both paving, decking and grating - and a large load spreader plate base that won’t compromise insulation or waterproof membrane. The ideal pedestal system for paving slabs, tiles and other natural surface finishes.

Technical Data Sheets and supporting documentation coming soon:

resource-center

Resource Centre

For A-PED

NBS Specifications visit:

NBS-plus

NBS Source

For help calculating pedestal requirements for your project please visit:

calculator

Pedestal Calculator

advantages

Advantages

accessories

Accessories

case-study_icon

Case Studies

A-PED Pedestals

new-a-rated-fire-icon-86
ALL COMPONENTSA1 FIRE-RATED
aped-height-adjust-icon
HEIGHT ADJUSTMENT 24-395MM
aped-slope-correction-icon
SLOPE CORRECTION UP TO 5%

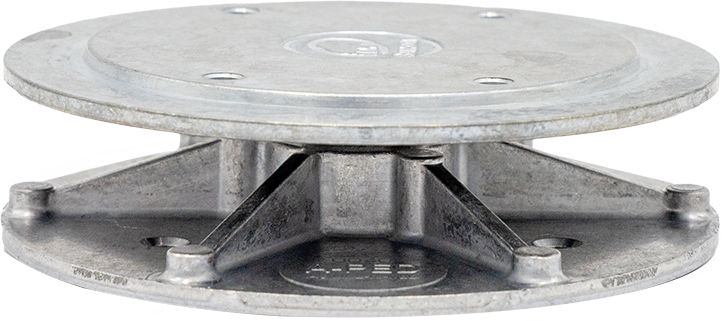

A-PED-24-30

A-PED-24-30

24-30mm
View

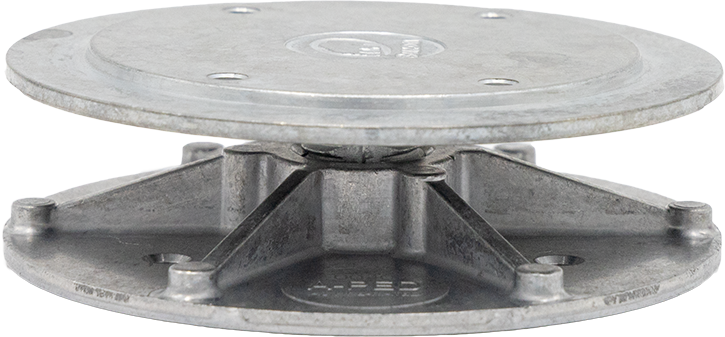

A-PED-28-34

A-PED-28-34

28-34mm
View

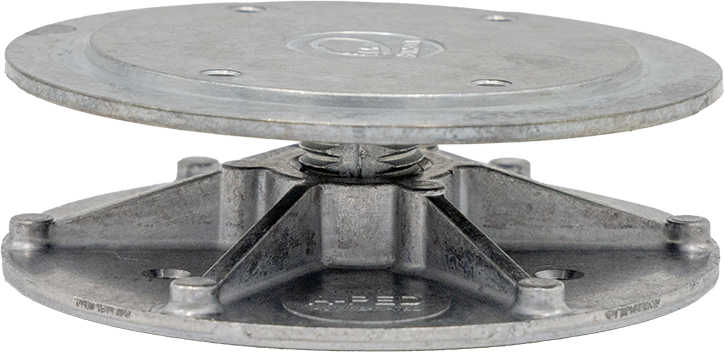

A-PED-33-39

A-PED-33-39

33-39mm
View

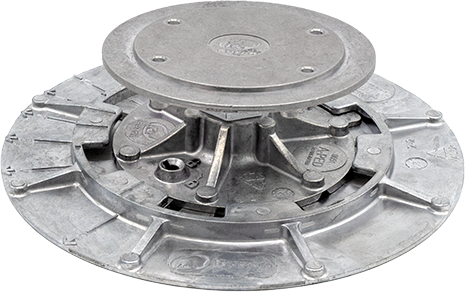

A-PED-33-48

A-PED-33-48

33-48mm
View

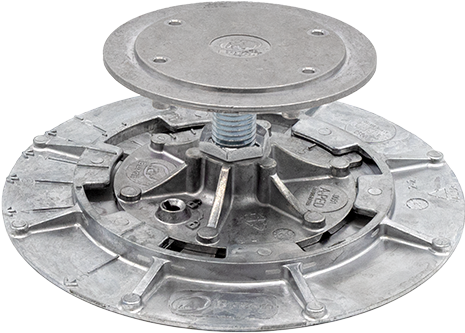

A-PED-48-65

A-PED-48-65

48-65mm
View

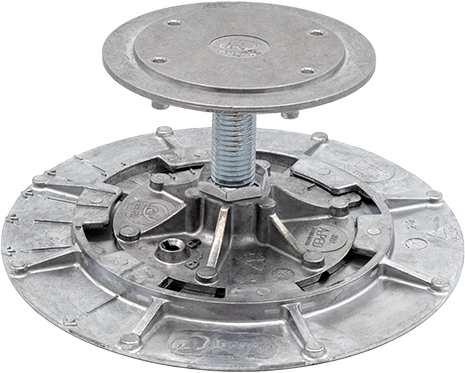

A-PED-57-82

A-PED-57-82

57-82mm
View
A-PED-72-117

A-PED-72-117

72-117mm
View
A-PED-105-150

A-PED-105-150

105-150mm
View

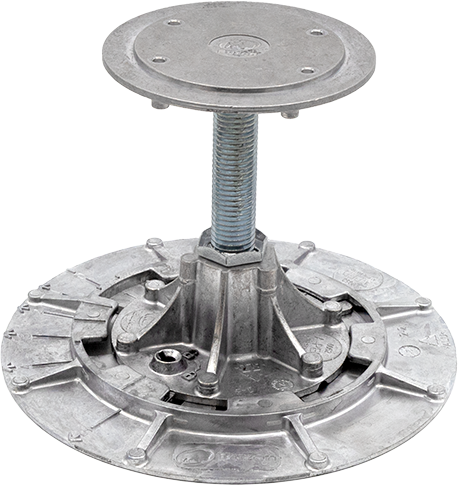

A-PED-140-185

A-PED-140-185

140-185mm
View

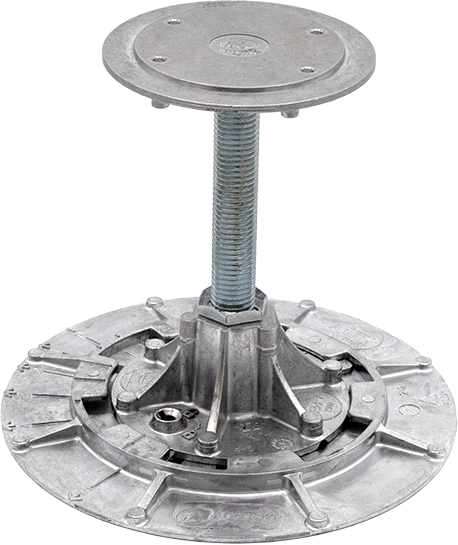

A-PED-175-220

A-PED-175-220

175-220mm
View

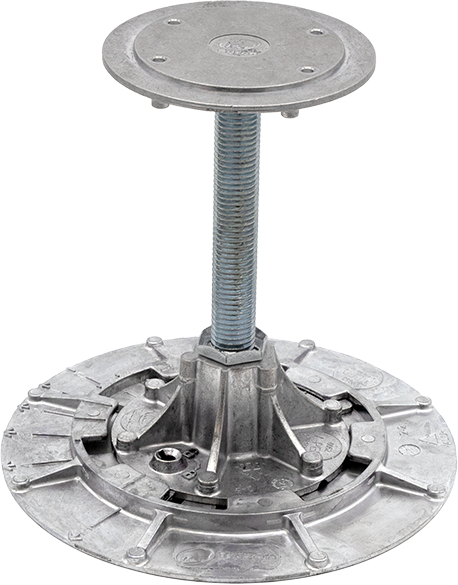

A-PED-210-255

A-PED-210-255

210-255mm
View

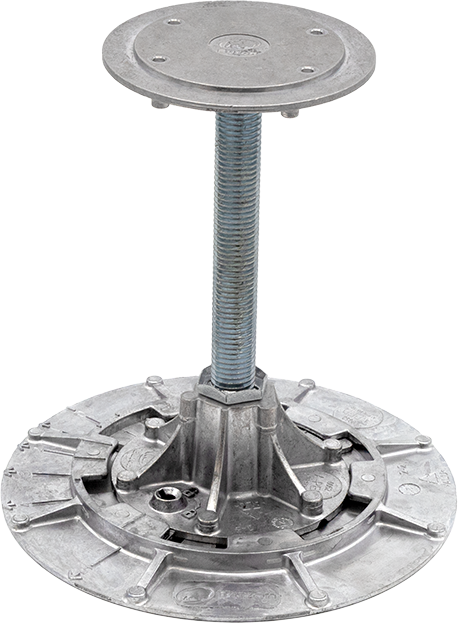

A-PED-245-290

A-PED-245-290

245-290mm
View

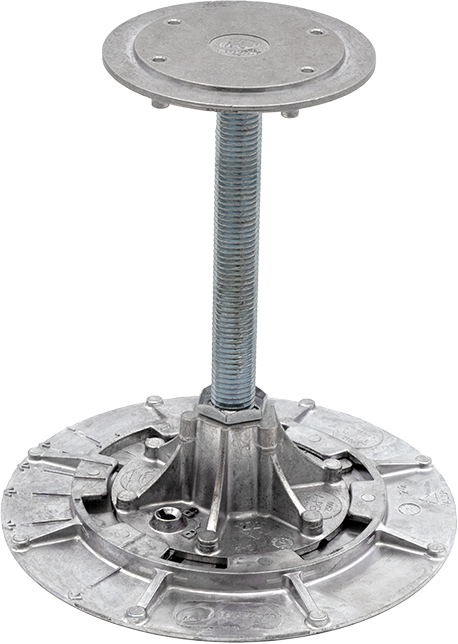

A-PED-280-325

A-PED-280-325

280-325mm
View

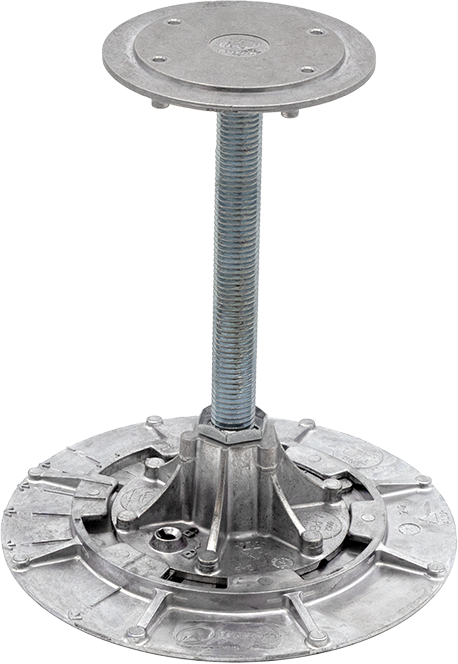

A-PED-315-360

A-PED-315-360

315-360mm
View

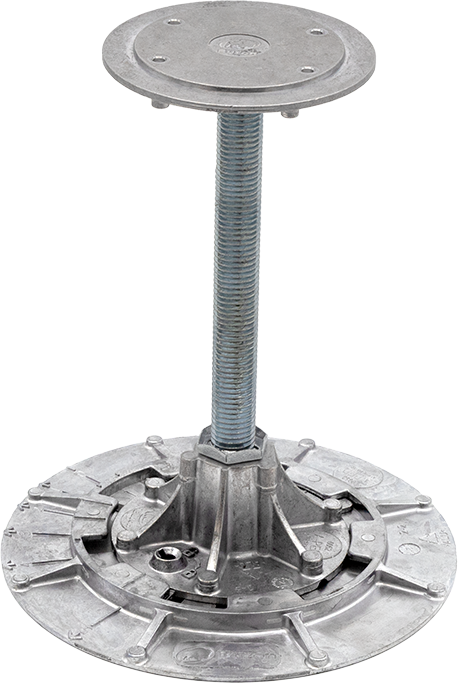

A-PED-350-395

A-PED-350-395

350-395mm
View

Advantages of Buzon Pedestals

Rapid Installation
Rapid Installation
Solution
Solutions for all situations
water run off
Rapid excess water run off
project
30 year project warranty
UV & weather
UV & weather resistant
load_bearing
Superior load bearing
Untitled-2
Acoustic & thermal insulation
image2-1

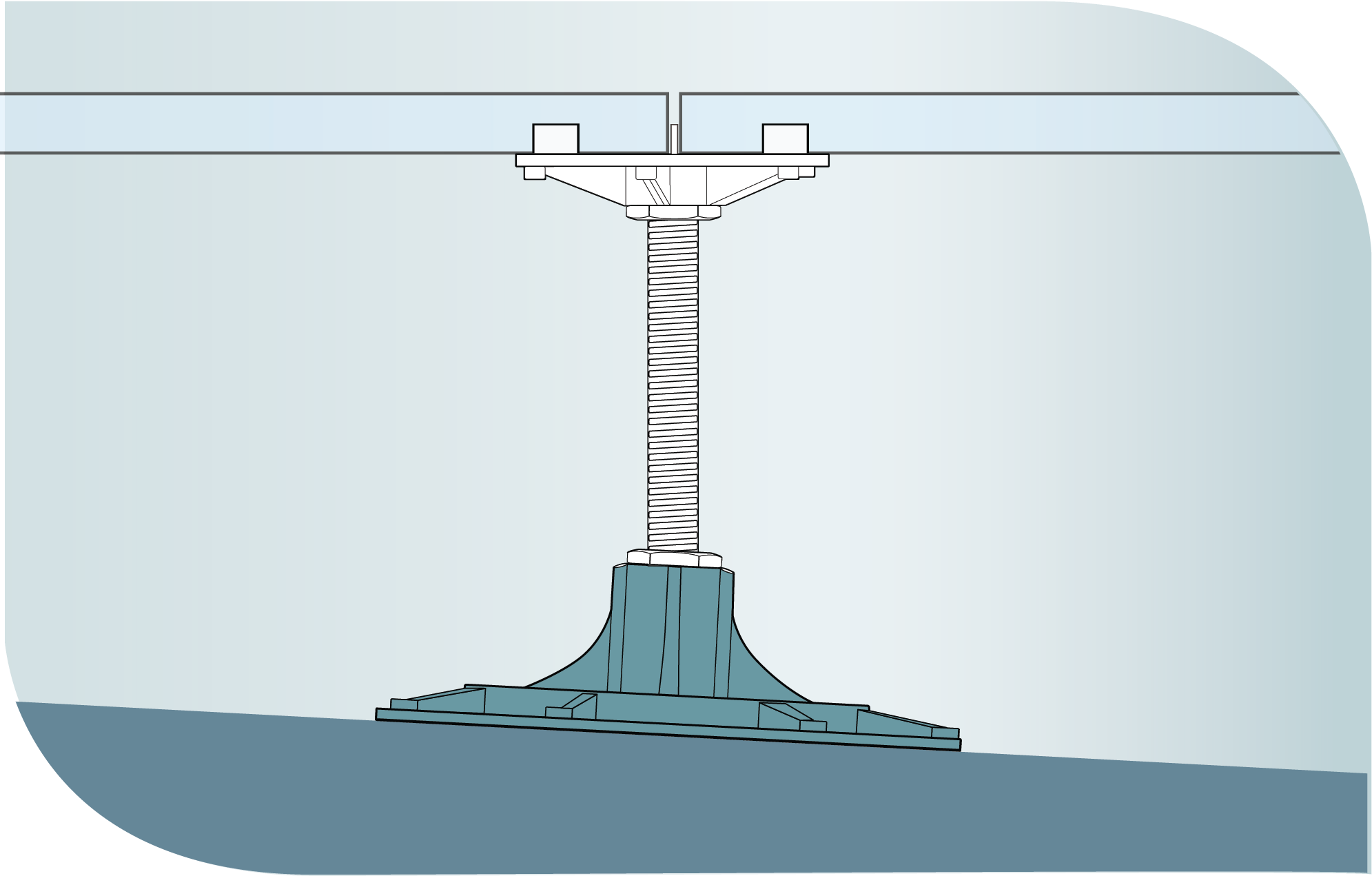

Patented slope corrector
Sustainable
Sustainable materials
technical support
Specialised technical support
Lightweight
Lightweight structure
Conceals-utilities
Conceals utilities

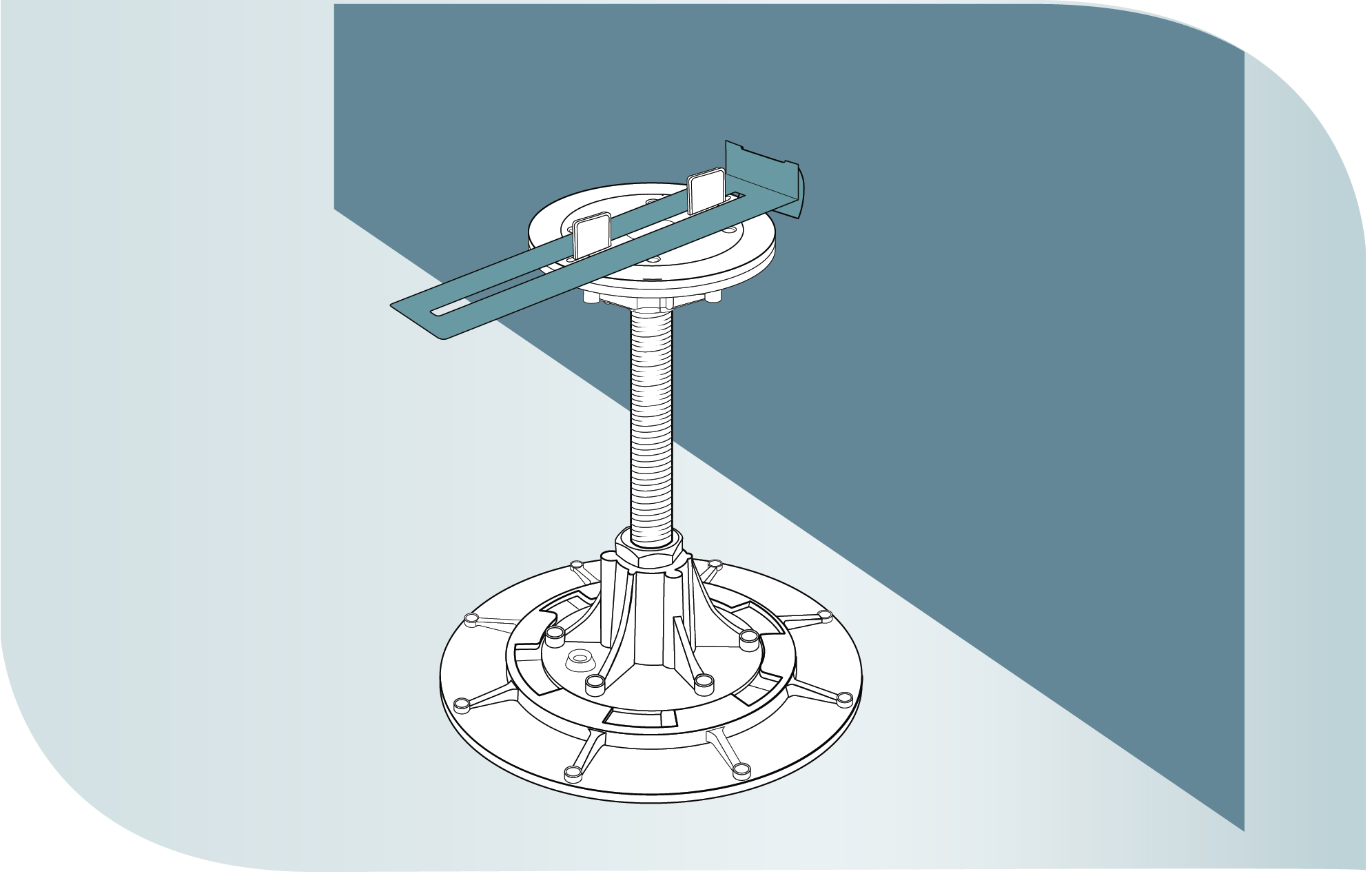

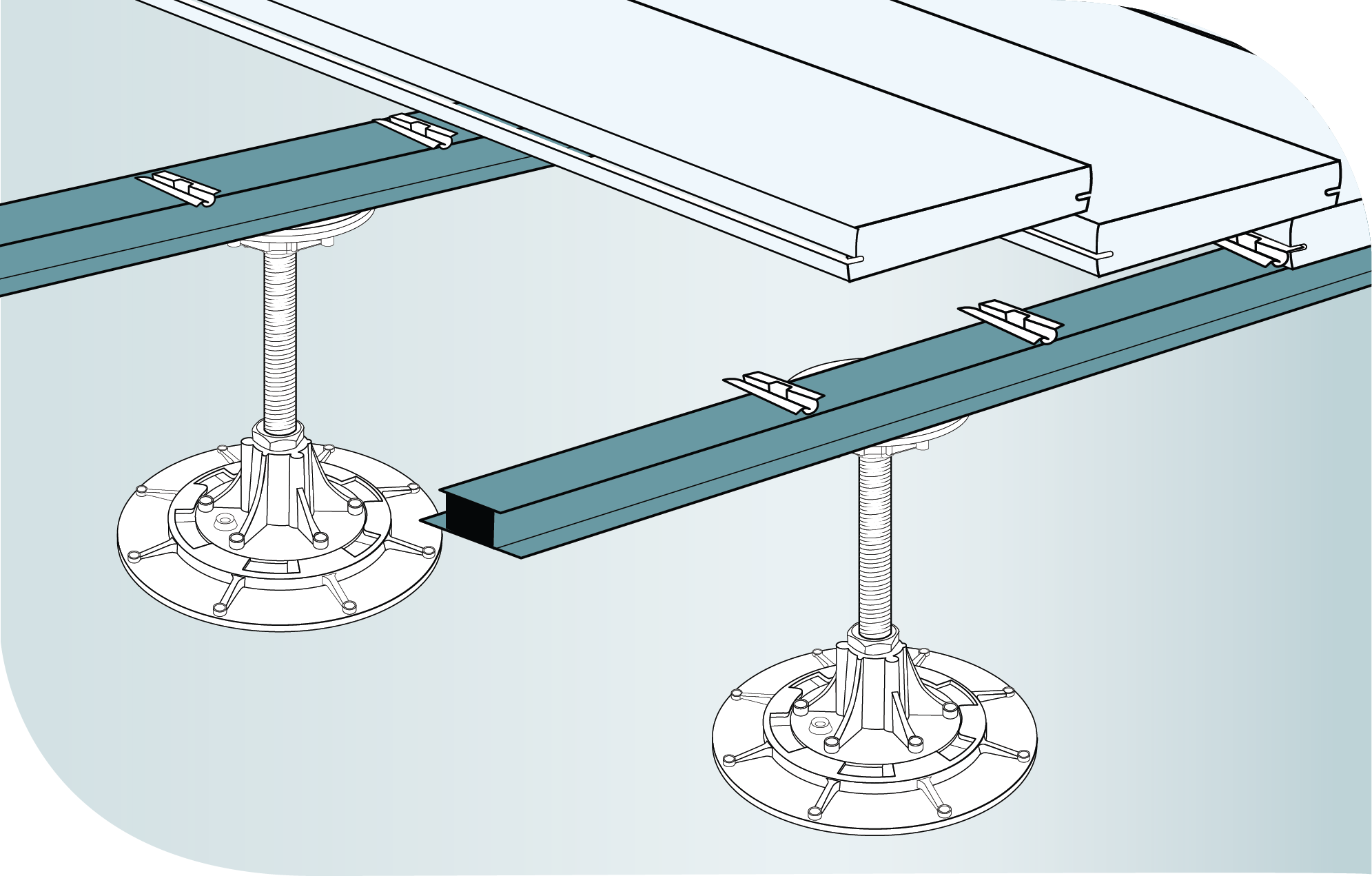

Accessories for the A-PED Range

All of the accessories we offer with the A-PED adjustable paver pedestal are Class A1 fire-rated to ensure that the entire range is fully non-combustible.

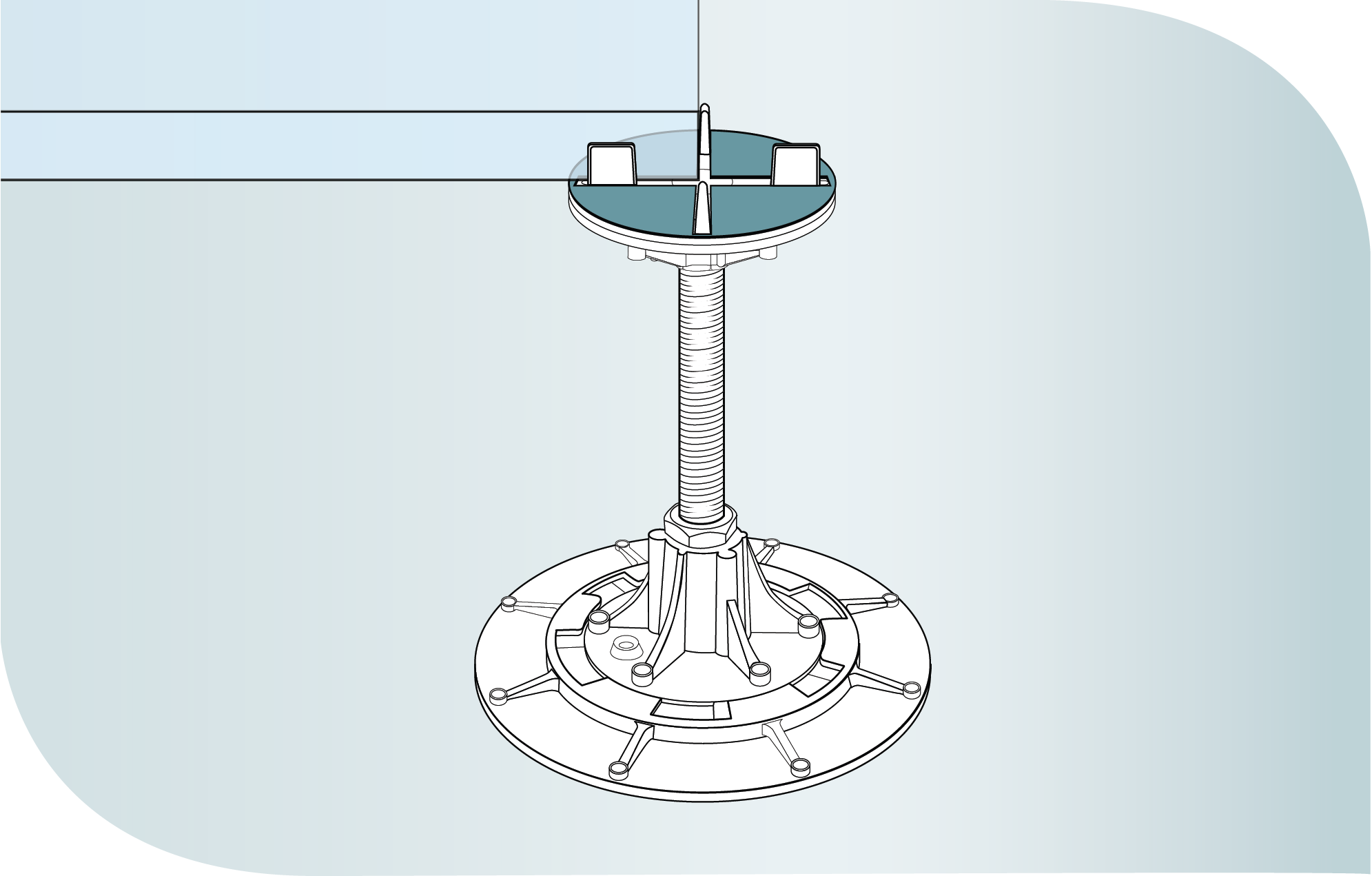

a-ped-spacer-tabs

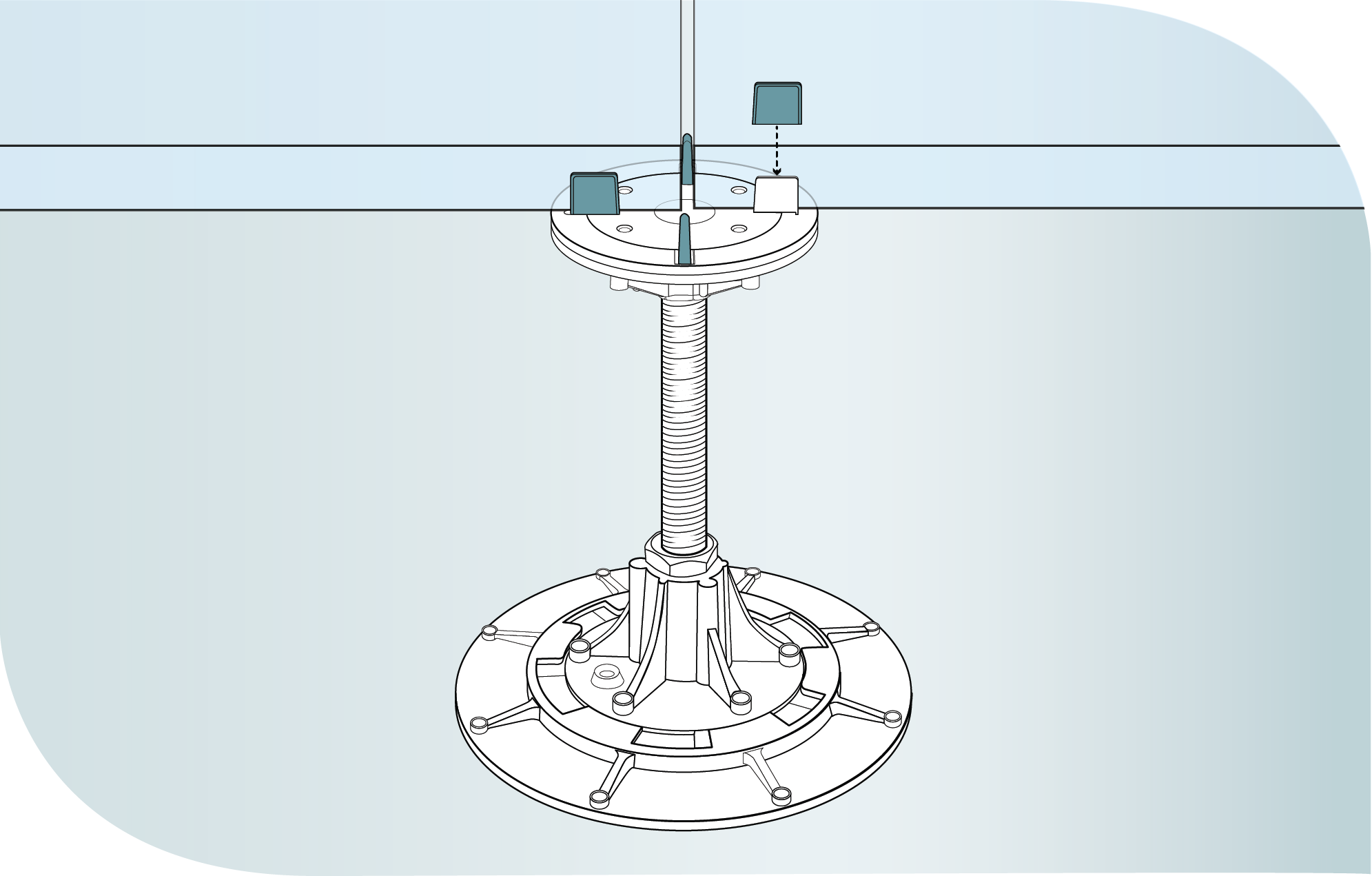

Spacer Tabs

Attached to the pedestal head, Spacer Tabs separate pavers maintaining perfect alignment and facilitating drainage. The A-PED has a 3mm spacer tab ring which fits on the pedestal head, but these can be extended to 5mm using caps that fit over the existing spacer tabs. The existing spacer tabs can be removed as required.

a-ped-calculator-bg

The Average Number of Pedestals Required Per m²*

Dimensions surface area
of the terrace
20 m2
50 m2
100 m2
1000 m2
Length
5
10
10
50
Width
4
5
10
20
Paver format
Pedestals/m2
Pedestals/m2
Pedestals/m2
Pedestals/m2
40 × 40 cm
7.70
7.28
6.76
6.43
50 × 50 cm
4.95
4.62
4.41
4.14
60 × 60 cm
4.00
3.60
3.24
2.94
75 × 75 cm
4.90
4.36
4.21
3.71
80 × 80 cm
4.15
4.06
3.65
3.24
90 × 90 cm
6.00
5.76
5.76
5.15
100 × 100 cm
4.95
4.62
4.41
4.14
120 × 30 cm
7.50
6.48
6.30
5.78
120 × 40 cm
5.50
5.04
4.68
4.34
120 × 60 cm
4.00
3.60
3.24
2.98
90 × 45 cm
6.00
5.76
5.76
5.15
Dimensions surface area
of the terrace
Length
20 m2
5
50 m2
10
100 m2
10
1000 m2
50
Dimensions surface area
of the terrace
Width
20 m2
4
50 m2
5
100 m2
10
1000 m2
20
Paver format
40 × 40 cm
Pedestals/m2
7.70
Pedestals/m2
7.28
Pedestals/m2
6.76
Pedestals/m2
6.43
Paver format
50 × 50 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
60 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.94
Paver format
75 × 75 cm
Pedestals/m2
4.90
Pedestals/m2
4.36
Pedestals/m2
4.21
Pedestals/m2
3.71
Paver format
80 × 80 cm
Pedestals/m2
4.15
Pedestals/m2
4.06
Pedestals/m2
3.65
Pedestals/m2
3.24
Paver format
90 × 90 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Paver format
100 × 100 cm
Pedestals/m2
4.95
Pedestals/m2
4.62
Pedestals/m2
4.41
Pedestals/m2
4.14
Paver format
120 × 30 cm
Pedestals/m2
7.50
Pedestals/m2
6.48
Pedestals/m2
6.30
Pedestals/m2
5.78
Paver format
120 × 40 cm
Pedestals/m2
5.50
Pedestals/m2
5.04
Pedestals/m2
4.68
Pedestals/m2
4.34
Paver format
120 × 60 cm
Pedestals/m2
4.00
Pedestals/m2
3.60
Pedestals/m2
3.24
Pedestals/m2
2.98
Paver format
90 × 45 cm
Pedestals/m2
6.00
Pedestals/m2
5.76
Pedestals/m2
5.76
Pedestals/m2
5.15
Dimensions surface area
of the terrace
20 m2
Length
5
Width
4
Paver format
Pedestals/m2
40 × 40 cm
7.70
50 × 50 cm
4.95
60 × 60 cm
4.00
75 × 75 cm
4.90
80 × 80 cm
4.15
90 × 90 cm
6.00
100 × 100 cm
4.95
120 × 30 cm
7.50
120 × 40 cm
5.50
120 × 60 cm
4.00
90 × 45 cm
6.00
Dimensions surface area
of the terrace
50 m2
Length
10
Width
5
Paver format
Pedestals/m2
40 × 40 cm
7.28
50 × 50 cm
4.62
60 × 60 cm
3.60
75 × 75 cm
4.36
80 × 80 cm
4.06
90 × 90 cm
5.76
100 × 100 cm
4.62
120 × 30 cm
6.48
120 × 40 cm
5.04
120 × 60 cm
3.60
90 × 45 cm
5.76
Dimensions surface area
of the terrace
100 m2
Length
10
Width
10
Paver format
Pedestals/m2
40 × 40 cm
6.76
50 × 50 cm
4.41
60 × 60 cm
3.24
75 × 75 cm
4.21
80 × 80 cm
3.65
90 × 90 cm
5.76
100 × 100 cm
4.41
120 × 30 cm
6.30
120 × 40 cm
4.68
120 × 60 cm
3.24
90 × 45 cm
5.76
Dimensions surface area
of the terrace
1000 m2
Length
50
Width
20
Paver format
Pedestals/m2
40 × 40 cm
6.43
50 × 50 cm
4.14
60 × 60 cm
2.94
75 × 75 cm
3.71
80 × 80 cm
3.24
90 × 90 cm
5.15
100 × 100 cm
4.14
120 × 30 cm
5.78
120 × 40 cm
4.34
120 × 60 cm
2.98
90 × 45 cm
5.15

Disclaimer:
*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
For tile formats larger than 60mm and / or pedestal heights greater than 100mm, additional supporting pedestals per tile may be required. Mesh backing on tiles may also be advisable in these circumstances.
Please contact us if you need further assistance determining quantities or pedestal layout. Note that calculations for large or complex areas will require supporting CAD files and will have a minimum 7 day lead time.
