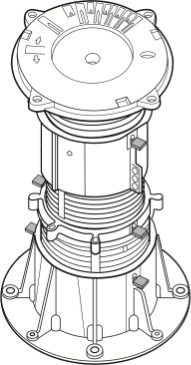

DPH PEDESTALS

Adjustable support pedestals for floors, walkways, terraces and plant room floors

Buzon pedestals have been used successfully throughout the world on a wide range of prestigious architectural projects. The versatility of the system means that they can be used easily for a small roof top terrace or for a large commercial installation.

Buzon is geared towards giving the specifier not just a product that meets and exceeds the required specification, but technical and on-site support that ensures the installation proceeds on spec, on time and on budget.

For technical data sheets and further information on the DPH pedestal range please visit the: RESOURCE CENTRE

For DPH Pedestal BIM Objects visit: NBS National BIM Library

What application do you need pedestals for?

DeckingPavingOther

Key Benefits

  • Made from 80% recycled polypropylene and 100% recyclable
  • Supports loads in excess of 1000 kg per pedestal
  • Patented slope corrector can create or compensate for up to 5% pitch and can accommodate a range of services beneath floor level as well as giving excellent drainage
  • Fully adjustable system from 17 to 1070mm
  • Easy access – services running in cavity below can be easily reached
  • For use at ground level or roof level for all types of stone, timber or industrial paving, decking or grid options

DPH Accessories

A full range of accessories have been developed to support the DPH Pedestal range

C2 COUPLER AND C5 COUPLER

The C2 or C5 coupler is used when the height of the pedestal exceeds 175mm (DPH 6 and upwards). The coupler is fitted by screwing between the base and the head of a DPH pedestal to make the higher pedestals in the DPH range (DPH-6 to DPH13). Depending on the desired height, the double C5 coupler can be used.

Two integrated flanges on either side of the coupler allow for mechanical fixing or cross-bracing, guaranteeing enhanced stability when the height exceeds 600mm. Both the C2 and C5 coupler are used for DPH 6-13 units.



DPH JOIST CRADLE

Joist Cradles support any kind of substructure and are the ideal joist support in height restricted areas, especially on roof terraces and patios. Placed on DPH pedestals and fixed using a plug-in system they firmly hold joists supporting deck boards.

Buzon joist cradles support the following substructures:

  • timber batten (joists)
  • composite battens
  • aluminium or steel support sections

Width of the support: up to 63mm. Fixing holes on both sides of the support are for mechanical fixing.


DPH SPACER TAB

Spacer tabs are 3 mm thick x 17 mm high and are fixed by pressure on to the head of DPH pedestals. Spacer tabs regulate spacing between the pavers, ensure alignment and free water drainage.

The format (3 mm x 17 mm), is more suited for the laying of thick ceramic pavers (minimum 20 mm).



PH5 SLOPE CORRECTOR

A slope corrector placed on top of the pedestal will compensate up to 5% in the substrate, and up to 10% by adding a BC slope corrector, which is placed on the base:


PB Pedestals

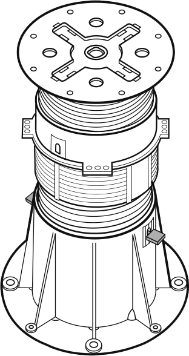

Adjustable pedestal for any type of terrace or raised floor

The PB pedestal is Buzon’s latest pedestal range. Fully adjustable from 28 to 955mm, PB pedestals are perfect for creating commercial and residential spaces.

Its ergonomic design makes the PB pedestal easy to adjust and allows quick and reliable installation. The enlarged surface of the head of the PB pedestal is specially adapted for the laying of very thick ceramic tiles, concrete and natural stone pavers, or a floor made of wooden or composite boards.

The versatility of the system means that they can be used easily for a small roof top terrace or for a large commercial installation.

For technical data sheets and further information on the PB pedestal range please visit the: RESOURCE CENTRE

For PB Pedestal NBS Specifications visit: NBS PLUS SPECIFICATIONS

What application do you need pedestals for?

DeckingPavingOther

Key Benefits

  • Made from 80% recycled polypropylene and 100% recyclable
  • Easy to use and adjust
  • Supports loads in excess of 1000kg per pedestal
  • Extra-large pedestal head specially designed for use with stoneware paving stones
  • Easy access – services running in cavity below can be easily reached
  • For use at ground level or roof level for all types of stone, timber or industrial paving, decking or grid options

PB Accessories

A full range of accessories have been developed to support the PB Pedestal range

C2 COUPLER

The C2 Coupler is unique to the PB pedestal range. The new PB-C2 coupler is used on PB-7 to PB-11 pedestals – adding the C2 coupler makes it easier to assemble the pedestals.

The C2 Coupler is fitted by screwing between the base and the head of the PB pedestal to increase the height of pedestals in the PB range (PB-7 to PB-11).


4MM STACKABLE SHIM

4mm stackable shim (up to 3 high)

The 4mm stackable shim is placed on the PB pedestal to stabalise the paver, it also provides additional acoutstic values, and because it can be split, it compensates for variations in paver thickness.

For use with marble, stone slabs, granite pavers and porcelain for shock and sound absorption.


PB JOIST CRADLE

The PB joist cradle is fixed in place by pressing on Buzon pedestals from the PB range.


The PB joist cradle effectively secures the joist to the pedestal, for wooden or composite decking.


PB SPACER TABS

The PB Spacer tab is fixed by pressure on the Buzon PB pedestal range. The spacer tabs regulate the spacing between the pavers, ensures alignment, and free water drainage.

PB spacer tabs are 2, 3 and 4.5mm thick x 17 mm high.

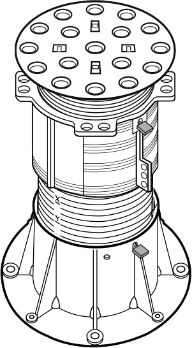

    BC Pedestals

    Adjustable pedestal for any type of terrace or raised floor

    The Buzon BC pedestal range has an adjustable height of 28 to 1120mm plus a multi-angle head and is suited to a range of joint and slab dimensions allowing them to be used with non-standard paving slabs.

    The BC pedestal adopts a new method of spacer tabs to separate pavers, inspiring creative architecture with unlimited possibilities.

    For technical data sheets and further information on the BC pedestal range please visit the: RESOURCE CENTRE

    For BC Pedestal BIM Objects visit: NBS National BIM Library

    What application do you need pedestals for?

    DeckingPavingOther

    Key Benefits

    • Made from 80% recycled polypropylene and 100% recyclable
    • Supports loads in excess of 1000 kg per pedestal
    • Patented slope corrector can create or compensate for up to 5% pitch and can accommodate a range of services beneath floor level as well as giving excellent drainage
    • Fully adjustable system from 28 to 1120mm
    • Locking clip and height setting lock
    • For use at ground level or roof level for all types of stone, timber or industrial paving, decking or grid options

    BC Accessories

    A full range of accessories have been developed to support the BC pedestal range

    C3 COUPLER

    A C3 coupler is used to extend a pedestal from BC7-BC12.

    A C3 coupler is used to extend a pedestal from BC7-BC12.


    C4 COUPLER

    The C4 coupler is used to extend a BC pedestal.

    The C4 coupler allows easy and precise adjustment of the height of the BC pedestal under the tile.

    The BC-6 pedestal below uses one C4 Coupler to increase the size of the pedestal to 240mm. Six locking keys are used to secure the coupler in place.


    BC/PH5 SLOPE CORRECTOR

    A BC/PH5 slope corrector will compensate up to 5% in the substrate, and up to 8% by adding an additional BC slope corrector.

    A BC/PH5 slope corrector placed underneath the pedestal will compensate up to 5% in the substrate, and up to 8% by adding an additonal BC slope corrector.


    BC JOIST CRADLE

    The joist cradle supports any kind of substructure – timber batten (joists), composite battens & aluminium or steel support sections.

    The adjustable BC joist cradle is available with 2 or 4 guides dependent on the complexity of the joist configuration. The BC joist cradle is adjustable between 35-90mm.


    BC CIRCULAR SPACER TAB

    2, 4.5, 6, 8 & 10mm (24mm high) or 3 & 4.5mm (17mm high)

    Circular tabs are fixed by pressure on the Buzon BC pedestal range. The spacer tabs regulate the spacing between the pavers, ensure alignment and free water drainage. These are circular and adapt perfectly to all forms of paver and allow the installation of terraces with geometric patterns.


    BC RECTANGULAR SPACER TAB

    2, 4.5, 6, 8 & 10mm (24mm high) or 3 & 4.5mm (17mm high)


    Rectangular tabs are fixed by pressure on the Buzon BC pedestal range. The spacer tabs regulate the spacing between the pavers, ensure alignment and free water drainage. These are rectangular and adapt perfectly to all forms of paver and allow the installation of terraces with geometric patterns.

    Universal Accessories

    A full range of universal accessories are available to support the DPH, PB and BC pedestal ranges.

    RUBBER SHIMS – 1mm & 2mm

    The rubber Shim is made in EPDM of 1 or 2mm reinforced (Shore 60). Placed on the Buzon pedestal it stabilises the paver, provides additional acoustic values, and because it can be split, it compensates for variations in paver thickness.

    For use with marble, stone slabs, granite pavers, porcelain etc for:

    • added anti-slip performance
    • shock and sound absorption
    • compensation for stone thickness variation


    3MM & 5MM RUBBER PROTECTOR PADS

    3mm and 5mm rubber protector pads

    The rubber protector pads are made of recycled rubber and are available in 3mm and 5mm formats. When placed under the pedestal, the pads protect the roof if required. They can also be used to raise the pedestal by 3mm or 5mm plus provides additional comfort.


      Buzon bubble level

      The Buzon Bubble Level is an essential tool if using the Buzon slope correction system.

      The Buzon Bubble Level measures the value and direction of the slope in any location where a Buzon pedestal is located. This information is essential for the use of our correction systems and slope control.


      ALURAIL SYSTEM

      The Buzon ALUrail system for outdoor raised floors allows for a simple and cost effective solution for all external terrace applications.

      The system can be used for various substrates, 20mm porcelain, concrete and natural stone pavers. Practical and functional, the ALUrail system can be used where the void is limited. The system, including the Buzon Pedestal range starts at 29mm.

      The system includes adjustable height supports in polypropylene, reinforced aluminium profiles and 3mm space tabs which allow for free drainage to the podium or WPM.

      The ALUrail comes in 2 heights; 18mm and 38mm, a width of 65mm, and lengths of 2400mm.

      Either side of the ALUrail are 2 rubber pads for the paver to sit on, offering a noise dampening feature. In between the rubber pads is a continuous recessed gap for the 3mm spacer tab to lock into, providing drainage between pavers.

      The ALUrail is powder coated in black, therefore not noticeable between the paving slabs. (Silver rails are noticeable). This, combined with the Buzon pedestals, rubber pads and spacer tab, will prove to be a ‘hidden’ system.

      The ALUrail is an ideal addition where tight datums are required, cantilevering or spanning awkward areas or equipment (i.e. ducting, air conditioning trays and pipes, power ducting, cable trays etc).

      For the ALUrail System BIM Object visit: NBS National BIM Library


      ALUGRATE SYSTEM

      The ALUgrate aluminium drainage system is discreetly fixed to the timber or ALUrail joist using a hidden clip system, or surface fixed between the vanes.

      Designed to mirror a DURADECK deckboard (hardwood or composite) and the Alfresco Floors range of 20mm external grade porcelain paving.

      The purpose of grating requirements is to remove splash-back issues from water hitting the decking or paving, and in turn onto the doors or facade. The special geometry of the ALUgrate allows it to ‘trap’ rainwater, which then falls directly onto the WPM or insulation layer.

      The length of the ALUgrate is 4000mm, offering a seamless installation, whereas traditional grating is typically 1200mm.

      For the ALUgrate System BIM Object visit: NBS National BIM Library


      DPH / PB / BC END FOR PORCELAIN TILES

      The DPH/BC/PB End finishing kit wraps the edge of the space created beneath the deck installed on Buzon pedestals. Two blades with claws encircle the 20mm thick tiles.

      This new accessory is available for use across the DPH / PB and BC Buzon pedestal ranges.
