Case study:

The Whiteley London

Get in touch

Project Details

Project:
The Whiteley, London
Location:
London, UK
Architect:
Foster + Partners
Main Contractor:
Laing O'Rourke
Scope:
Supply and install of Class A fire rated & BROOF(t4) systems on 201 balconies & 4,700m² of terraces
Products:
PB Pedestals with U-PH5 slope correction, ALUrail, REIF Duralink
Project status:
Complete

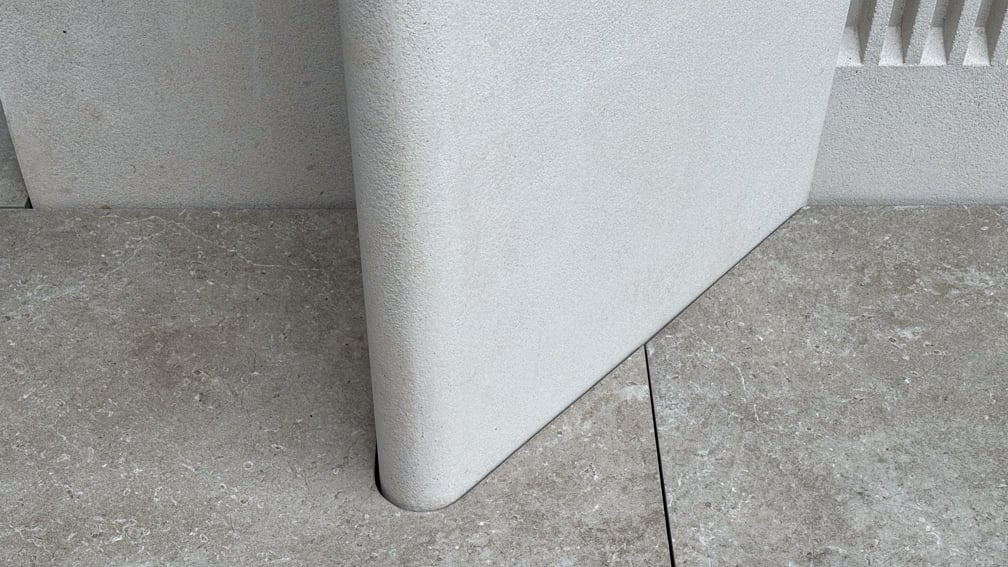

The Whiteleys-34

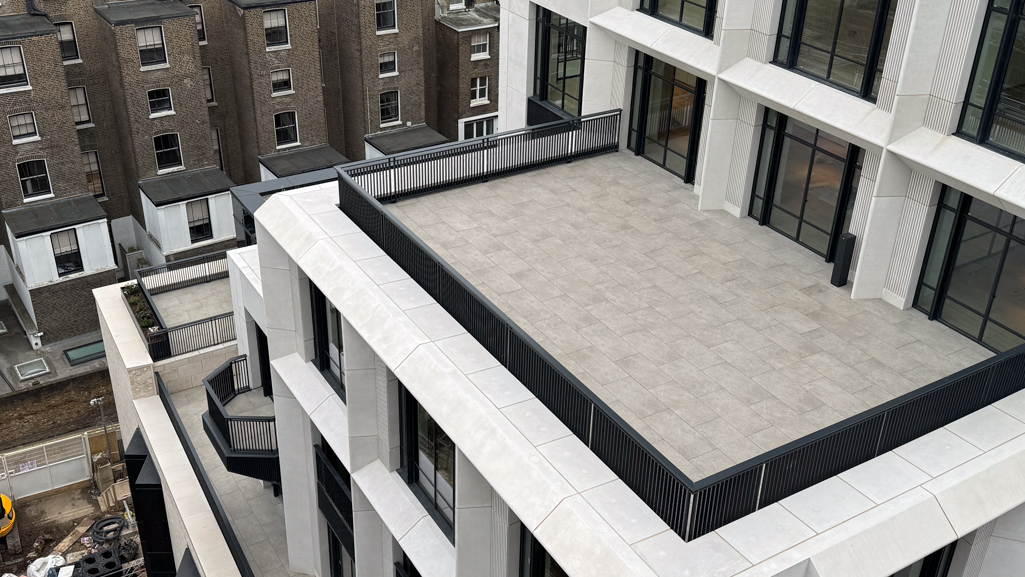

The Whiteleys-28
precision balcony install by Buzon UK

Project Description

The Whiteley has been beatuifully restored by Foster + Partners, retaining the façade of the landmark Grade II listed shopping centre and transforming it in to a vibrant mixed-use development, incorporating retail, restaurants, hotel and residential.

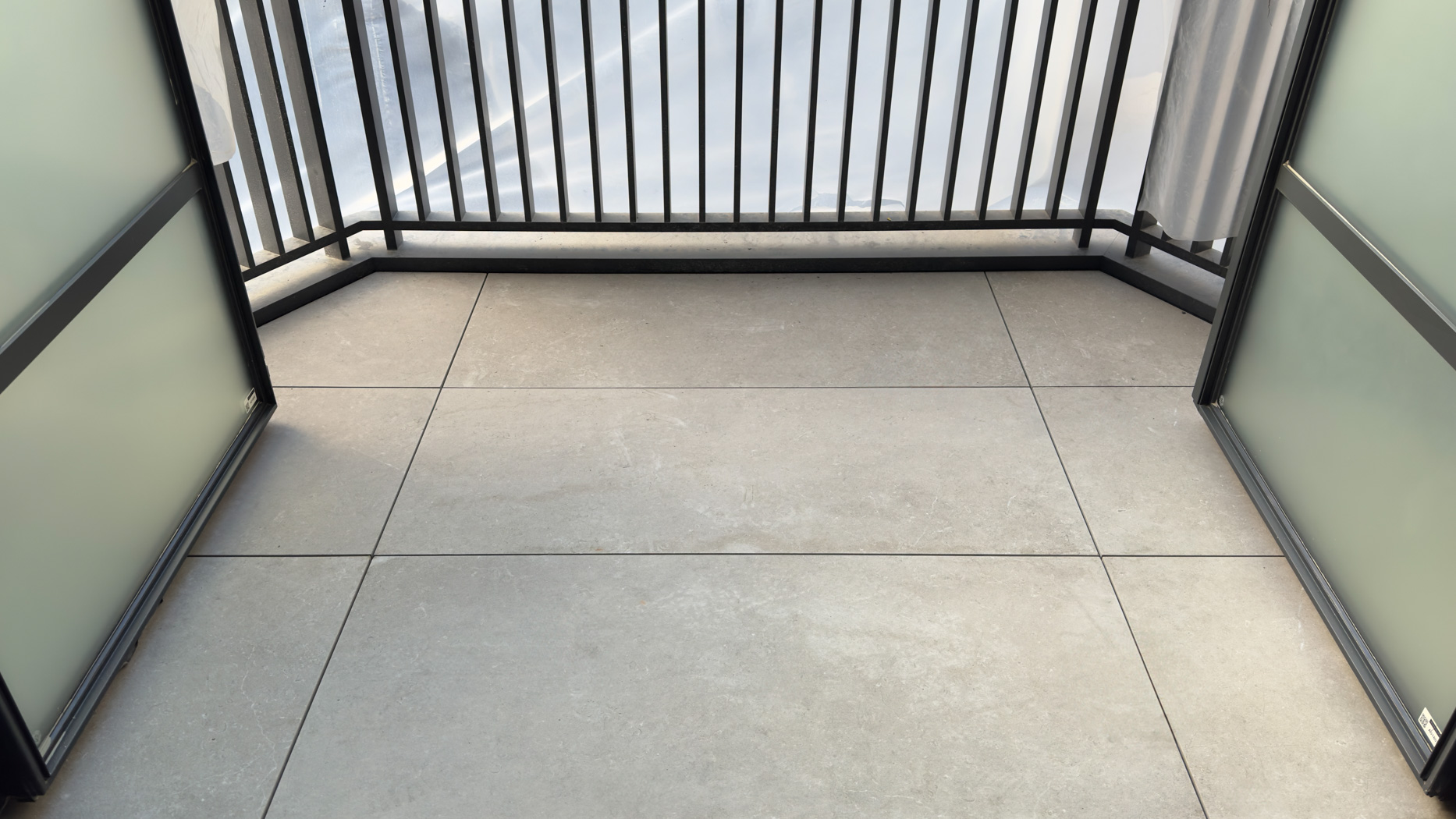

Buzon UK were contracted to supply and install the 132  heritage balconies featured on the façade, and 69 bolt-on balconies that face in to the inner courtyard, as well as over 4,700 square metres of terraces.

The balconies required a non-combustible solution and with such a small void, the Class A fire-rated REIF system was perfect for supporting the 20mm external porcelain.

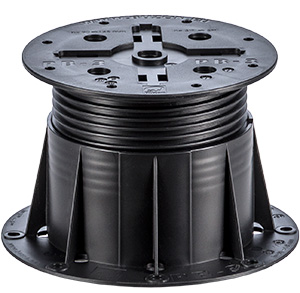

Significant savings were made on the terraces with a certified BROOF(t4) solution using the PB range of polypropylene pedestals with ALUrail.  The certification covered the full build-up that consisted of Radmat waterproofing, ballast and 20mm porcelain from Domus as well as the Buzon components.

This was a job that demanded the highest of standards and detail, and the team from Buzon UK have once again delivered.



Testimonials

Buzon UK has been a key partner to Domus for many years. Mike and his team have always been very supportive, offering us the most modern and technically proficient pedestal systems available. Their expertise in sub-floor systems and installation allows us to support our Architectural and Contractor partners to the very best of our ability.

Anthony Wrinch, Sales Director
Domus
